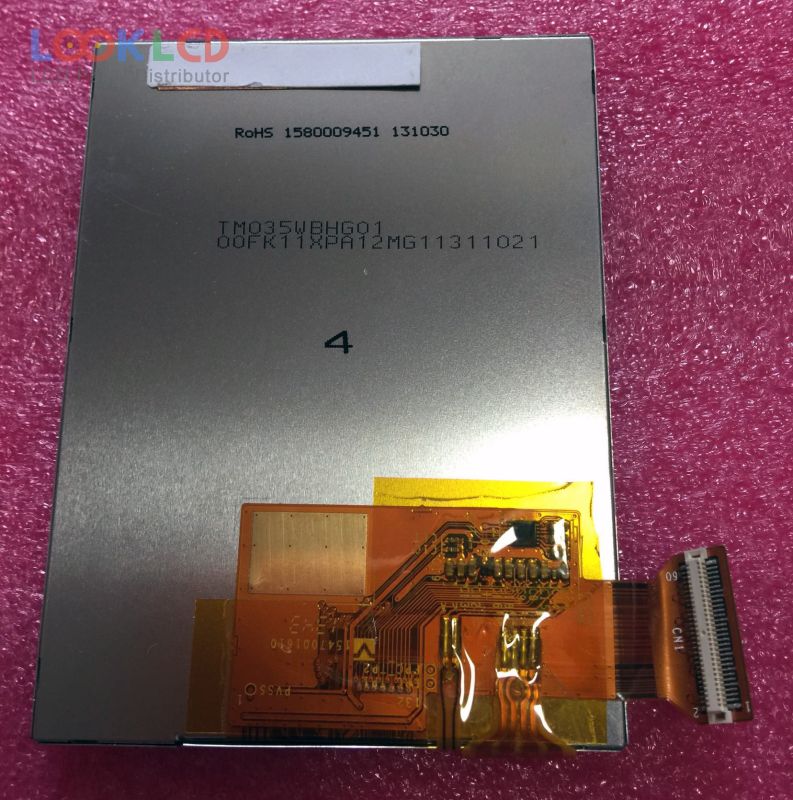

| Broj dijela | TM035WBHG01 |
| Marka | Tianma |
| Veličina | 3.5 |
| Primjena | HHP |
| Rezolucija | 480×640 |
| Sastav | LCM |
| Svjetlina | 250 |
| CR | 500:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | TIANMA |
| panelni model | TM035WBHG01 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 3.5 inch |
| rezolucija | 480(RGB)×640 , VGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 53.28×71.04 mm |
| obris | 64×85×4.63 mm |
| površinski | Antiglare |
| svjetlina | 250 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193150% |
| vrijeme odziva | 25 (Typ.)(Tr+Td) |
| kut gledanja | 60/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 6S1PWLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit), 60 pins |
| ulazni napon | 2.8V (Typ.) |
| primjena | HHP |
