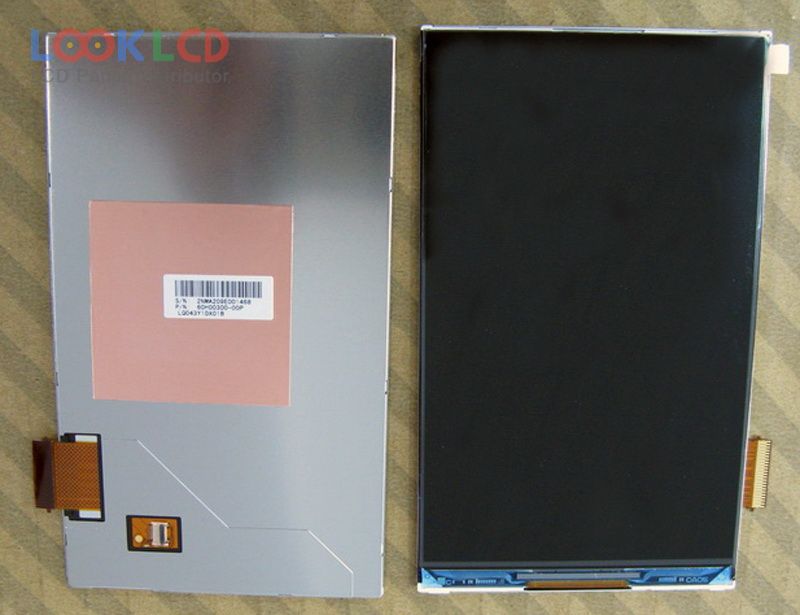

| Broj dijela | LQ043Y1DX01B |
| Marka | SHARP |
| Veličina | 4.3 |
| Primjena | MPH |
| Rezolucija | 480×800 |
| Sastav | LCM |
| Svjetlina | 350 |
| CR | 900:1 |
| Boje | 65K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | SHARP |
| panelni model | LQ043Y1DX01B 3 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 4.3 inch |
| rezolucija | 480(RGB)×800 , WVGA |
| način prikaza | ASV, Normally Black, Transmissive |
| aktivno područje | 56.16×93.6 mm |
| obris | 62.46×105.9 mm |
| površinski | Hard coating (3H) |
| svjetlina | 350 cd/m² (Typ.) |
| omjer kontrasta | 900:1 (Typ.) |
| boje prikaza | 65K , CIE193172% |
| vrijeme odziva | 35 (Typ.)(Tr+Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 8S1PWLEDWithout Driver |
| signalno sučelje | Parallel RGB, 45 pins |
| ulazni napon | 3.0/2.6V (Typ.)(VCI/VDDIO) |
| primjena | MPH |
| AT043TN24 V.1 | Innolux | 4.3 | 480×272 |
| G043FTT01.0 | AUO | 4.3 | 480×272 |
| LQ043Y1DX01 | SHARP | 4.3 | 480×800 |
| LQ043Y1DX01B | SHARP | 4.3 | 480×800 |
| LQ043Y1DX01D | SHARP | 4.3 | 480×800 |
| LQ043Y1DX02 | SHARP | 4.3 | 480×800 |
| LQ043Y1DX03D | SHARP | 4.3 | 480×800 |
| LR430RC9001 | Innolux | 4.3 | 480×272 |
| LS043K1SX02 | SHARP | 4.3 | 720×1280 |
| TD043MTEA1 | TPO | 4.3 | 800×480 |
| AMDM001 | Samsung | 2.6 | 240×400 |
| BTL282440-310L | BOE | 2.8 | 240×400 |
| CLAN055WA41 3XB | CPT | 5.5 | 720×1280 |
| DX08D11VM0AAA | KOE | 3.0 | 480×800 |
| H381DLN01.0 | AUO | 3.8 | 1080×1200 |
| HVA37WV1-M02 | HYDIS | 3.7 | 480×800 |
| LH450WX1-SD01 | LG Display | 4.5 | 720×1280 |
| LH470WX6-SD01 | LG Display | 4.7 | 750×1334 |
| LS055R1SX03 | SHARP | 5.5 | 1440×2560 |
| TM024HBZ26 | Tianma | 2.4 | 240×320 |
