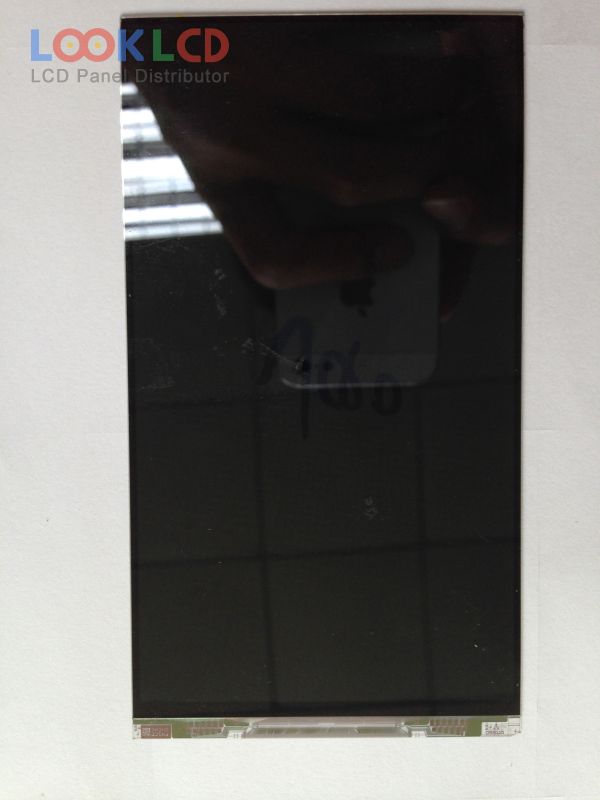

| Broj dijela | CLAN055WA41 3XB |
| Marka | CPT |
| Veličina | 5.5 |
| Primjena | MPH |
| Rezolucija | 720×1280 |
| Sastav | CELL |
| Svjetlina | 0 |
| CR | 800:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | No B/L |
| Sučelje | |
| marka panela | CPT |
| panelni model | CLAN055WA41 3XB 1 Compatible model |
| vrsta panela | a-Si TFT-LCD , CELL |
| veličina ploče | 5.5 inch |
| rezolucija | 720(RGB)×1280 , WXGA |
| način prikaza | HFFS, Normally Black, Transmissive |
| aktivno područje | 68.04×120.96 mm |
| obris | 70.84×128.96 mm |
| površinski | Hard coating |
| dubina stakla | 0.20+0.20 mm |
| transmisivnost | 5.0% (Typ.)(with APCF) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193170% |
| vrijeme odziva | 30 (Typ.)(Tr+Td) |
| kut gledanja | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| vozač ic | COG Suggest OTM1283A-C35 |
| ulazni napon | 1.8/2.8/2.8V (Typ.)(VDDI/VCIVCC) |
| primjena | MPH |
