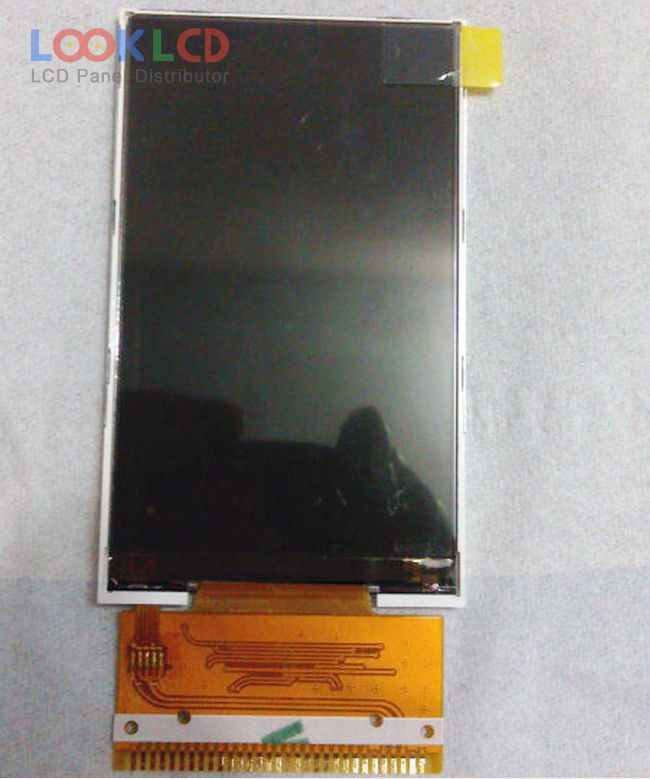

| Broj dijela | BTL282440-310L |
| Marka | BOE |
| Veličina | 2.8 |
| Primjena | MPH |
| Rezolucija | 240×400 |
| Sastav | LCM |
| Svjetlina | 190 |
| CR | 240:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | CPU |
| marka panela | BOE |
| panelni model | BTL282440-310L |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 2.8 inch |
| rezolucija | 240(RGB)×400 , WQVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 36.72×61.2 mm |
| obris | 42.5×71.4 mm |
| površinski | Clear |
| svjetlina | 190 cd/m² (Typ.) |
| omjer kontrasta | 240:1 (Typ.) |
| boje prikaza | 262K |
| vrijeme odziva | 25 (Typ.)(Tr+Td) |
| kut gledanja | 55/55/60/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1S4PWLEDWithout Driver |
| signalno sučelje | CPU, 31 pins |
| ulazni napon | 2.8/2.8V (Typ.)(IOVCC/VCC) |
| primjena | MPH |
