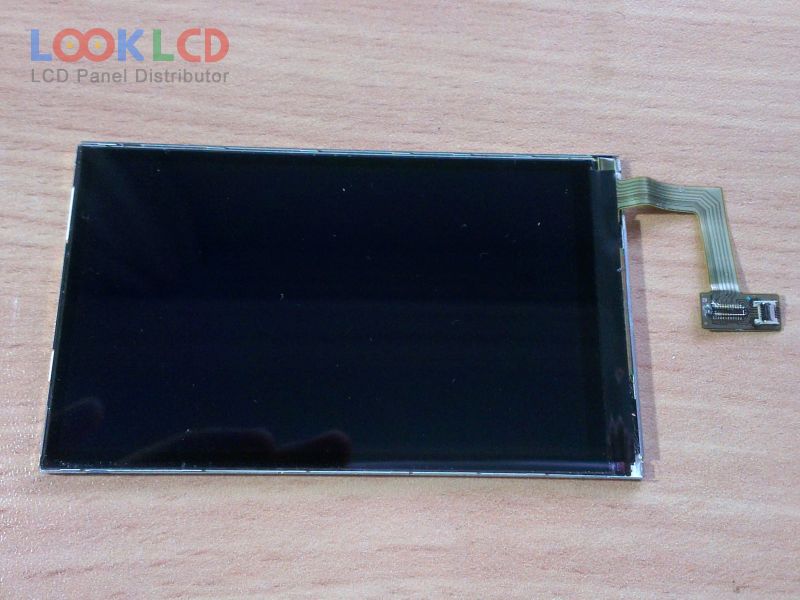

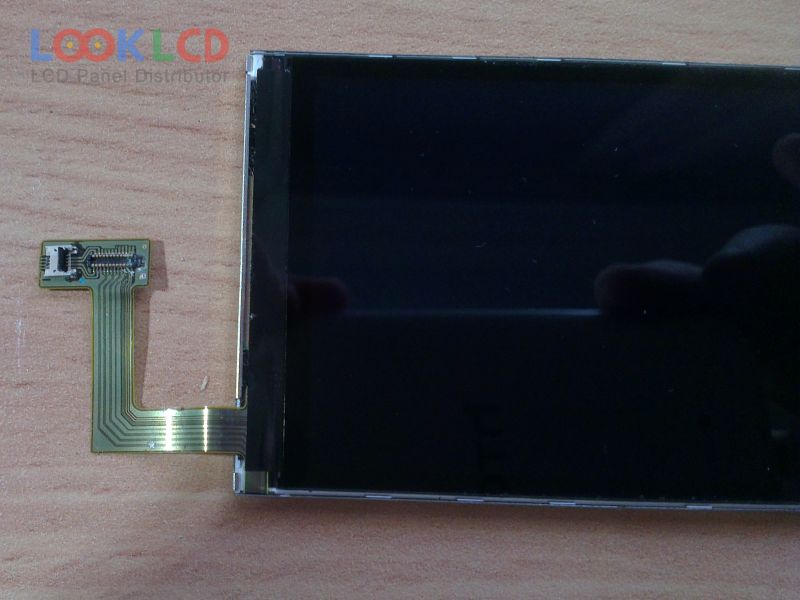

| Broj dijela | ACX565AKM-7 |
| Marka | SONY |
| Veličina | 3.5 |
| Primjena | MPH |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | 275 |
| CR | 500:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | CDP |
| marka panela | SONY |
| panelni model | ACX565AKM-7 |
| vrsta panela | LTPS TFT-LCD , LCM |
| veličina ploče | 3.5 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | VSPEC II, Normally Black, Transflective |
| aktivno područje | 76.8×46.08 mm |
| obris | 87.9×52.18 mm |
| površinski | |
| svjetlina | 275 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.)(Transmissive)24:1 (Typ.)(Reflective) |
| boje prikaza | 16.7M (8-bit), CIE193170% |
| vrijeme odziva | 12/7 (Typ.)(Tr/Td) |
| kut gledanja | |
| frekvencija | 60Hz |
| tip svjetiljke | 3S2PWLEDWithout Driver |
| signalno sučelje | CDP (2 Lane) + SPI, 24 pins |
| ulazni napon | 1.8/2.75V (Typ.)(VDDI/VDD) |
| primjena | MPH |
