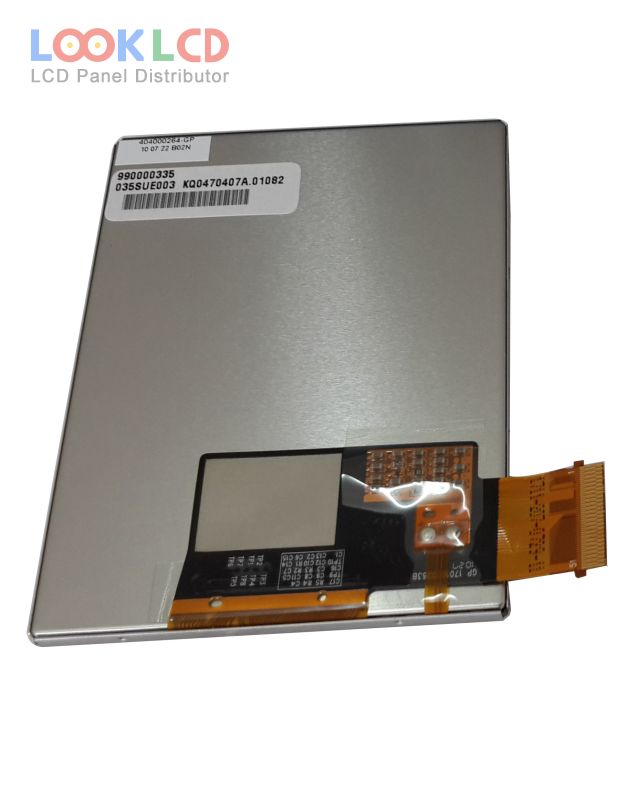

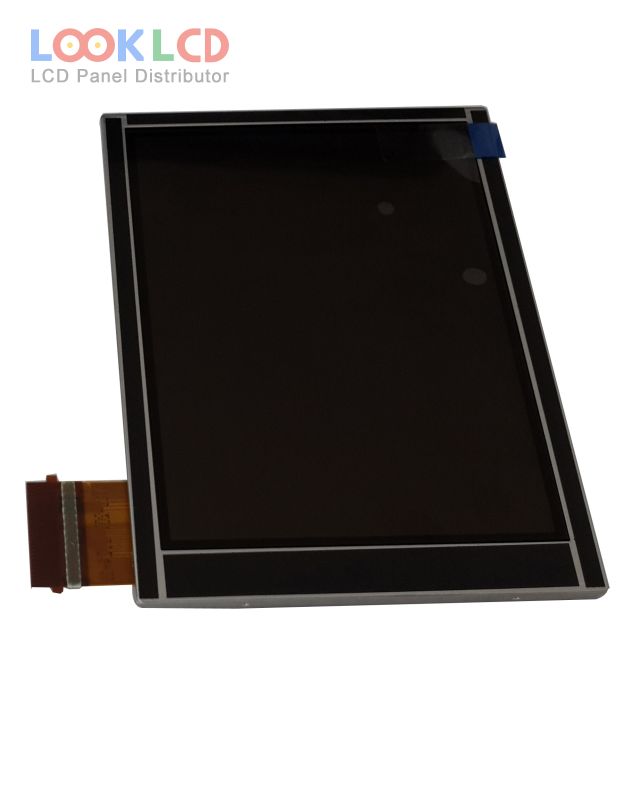

| Broj dijela | TD035SHED1 |
| Marka | TPO |
| Veličina | 3.5 |
| Primjena | MPH |
| Rezolucija | 480×640 |
| Sastav | LCM |
| Svjetlina | 170 |
| CR | 200:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | TPO |
| panelni model | TD035SHED1 |
| vrsta panela | LTPS TFT-LCD , LCM |
| veličina ploče | 3.5 inch |
| rezolucija | 480(RGB)×640 , VGA |
| način prikaza | TN, Normally White, Transflective |
| aktivno područje | 53.28×71.04 mm |
| obris | 64×85 mm |
| površinski | |
| svjetlina | 170 cd/m² (Typ.) |
| omjer kontrasta | 200:1 (Typ.)(Transmissive)8:1 (Typ.)(Reflective) |
| boje prikaza | 262K (6-bit), CIE193137% |
| vrijeme odziva | 35 (Typ.)(Tr+Td) |
| kut gledanja | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 6S1PWLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit) + SPI, 51 pins |
| ulazni napon | 3.0/3.0V (Typ.)(VDC/VDDIO) |
| primjena | MPH |
