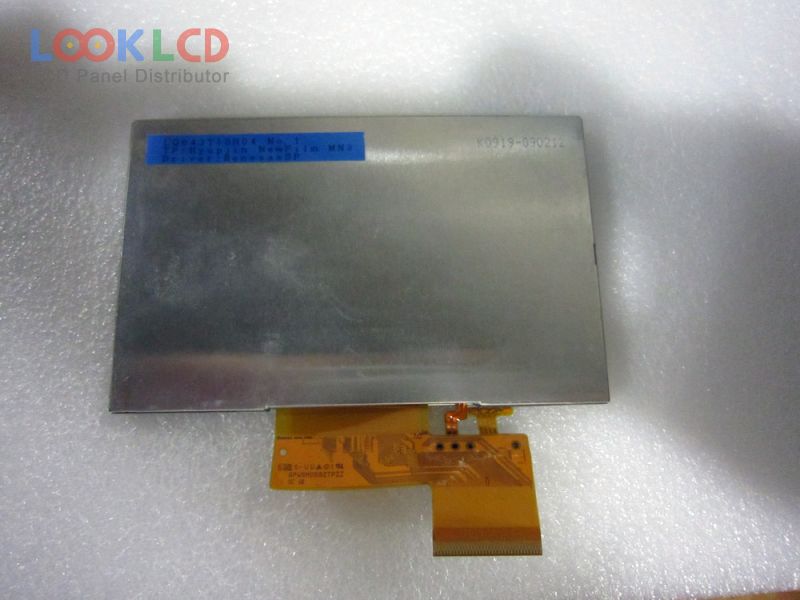

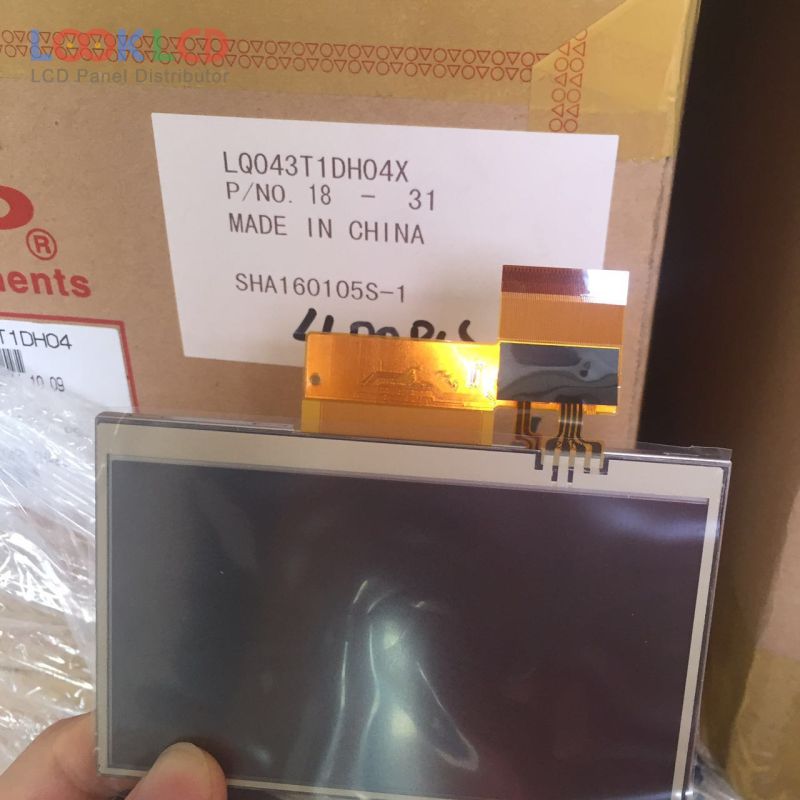

| Broj dijela | LQ043T1DH04 |
| Marka | SHARP |
| Veličina | 4.3 |
| Primjena | PND |
| Rezolucija | 480×272 |
| Sastav | LCM |
| Svjetlina | 360 |
| CR | 300:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | SHARP |
| panelni model | LQ043T1DH04 2 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 4.3 inch |
| rezolucija | 480×272(RGB) , WQVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 95.04×53.856 mm |
| obris | 105.5×67.2×4.45 mm |
| površinski | Antiglare, Hard coating (2H) |
| svjetlina | 360 cd/m² (Typ.) |
| omjer kontrasta | 300:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193148% |
| vrijeme odziva | 8/8 (Typ.)(Tr/Td) |
| kut gledanja | 45/45/20/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 9S1PWLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit) + SPI, 67 pins |
| ulazni napon | 1.8/(3.3/2.8)V (Typ.)(VDDIO/VCI) |
| primjena | PND |
| LQ043T1DG03B | SHARP | 4.3 | 480×272 |
| LQ043T1DG04 | SHARP | 4.3 | 480×272 |
| LQ043T1DH01 | SHARP | 4.3 | 480×272 |
| LQ043T1DH04 | SHARP | 4.3 | 480×272 |
| LQ043T1DH41 | SHARP | 4.3 | 480×272 |
| LQ043T1DH42 | SHARP | 4.3 | 480×272 |
| LQ043T3DX03 | SHARP | 4.3 | 480×272 |
| LQ043T3DX03A | SHARP | 4.3 | 480×272 |
| LQ043Y1DX01B | SHARP | 4.3 | 480×800 |
| LQ043Y1DX03D | SHARP | 4.3 | 480×800 |
| AT050TN33 | Innolux | 5.0 | 480×272 |
| DLC0430LZG-8 | Other | 4.3 | 480×272 |
| ED043CA-01D | Innolux | 4.3 | 480×272 |
| HSD043I9W1-B00 | HannStar | 4.3 | 480×272 |
| HSD050IDW1-A30 | HannStar | 5.0 | 800×480 |
| LMS430HF20 | Samsung | 4.3 | 480×272 |
| LMS500HF13-002 | Samsung | 5.0 | 480×272 |
| LQ043T1DH01 | SHARP | 4.3 | 480×272 |
| LQ043T3DG01 | SHARP | 4.3 | 480×272 |
| LTP400WQ-F01 | Samsung | 4.0 | 480×272 |
