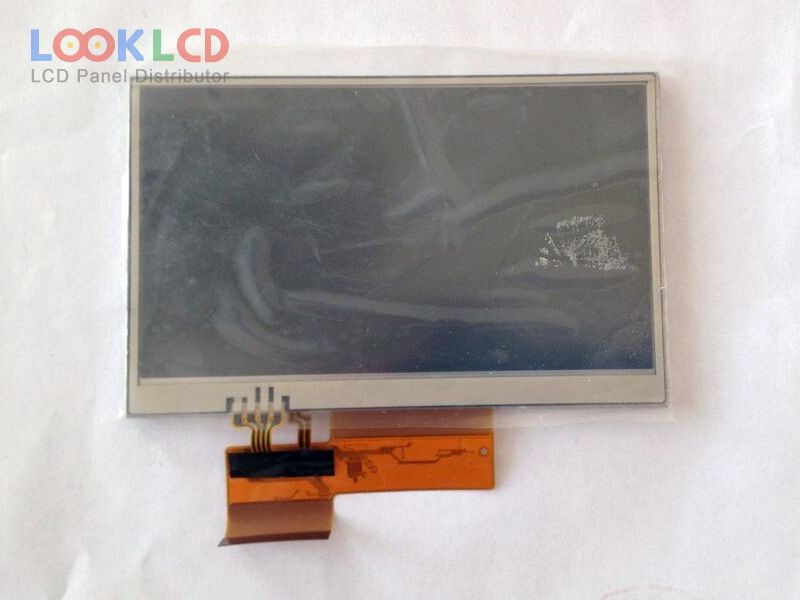

| Broj dijela | LQ043T1DH41 |
| Marka | SHARP |
| Veličina | 4.3 |
| Primjena | PND |
| Rezolucija | 480×272 |
| Sastav | LCM |
| Svjetlina | 360 |
| CR | 300:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | SHARP |
| panelni model | LQ043T1DH41 2 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 4.3 inch |
| rezolucija | 480×272(RGB) , WQVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 95.04×53.856 mm |
| obris | 105.5×67.2×4.45 mm |
| površinski | Antiglare, Hard coating (2H) |
| svjetlina | 360 cd/m² (Typ.) |
| omjer kontrasta | 300:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193148% |
| vrijeme odziva | 8/8 (Typ.)(Tr/Td) |
| kut gledanja | 45/45/20/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 9S1PWLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit) + SPI, 67 pins |
| ulazni napon | 1.8/(3.3/2.8)V (Typ.)(VDDIO/VCI) |
| primjena | PND |
| LQ043T1DG01 | SHARP | 4.3 | 480×272 |
| LQ043T1DH01 | SHARP | 4.3 | 480×272 |
| LQ043T1DH41 | SHARP | 4.3 | 480×272 |
| LQ043T3DG01 | SHARP | 4.3 | 480×272 |
| LQ043T3DX02 | SHARP | 4.3 | 480×272 |
| LQ043T3DX03 | SHARP | 4.3 | 480×272 |
| LQ043T3DX03A | SHARP | 4.3 | 480×272 |
| LQ043T3DX0E | SHARP | 4.3 | 480×272 |
| LQ043T3DX0G | SHARP | 4.3 | 480×272 |
| LQ043Y1DX03D | SHARP | 4.3 | 480×800 |
| 43WQW4H | SII | 4.3 | 480×272 |
| DLC0500HZG-T-8 | Other | 5.0 | 800×480 |
| HSD043I9W1-A01 | HannStar | 4.3 | 480×272 |
| HST043BOH57-40AV0 | Other | 4.3 | 480×272 |
| LB035Q04-TD08 | LG Display | 3.5 | 320×240 |
| LMS480KC01 | Samsung | 4.8 | 800×480 |
| LMS500HF01 | Samsung | 5.0 | 480×272 |
| LMS500HF06 | Samsung | 5.0 | 480×272 |
| LMS500HF13-002 | Samsung | 5.0 | 480×272 |
| PD035QX1 | E Ink | 3.5 | 240×320 |
