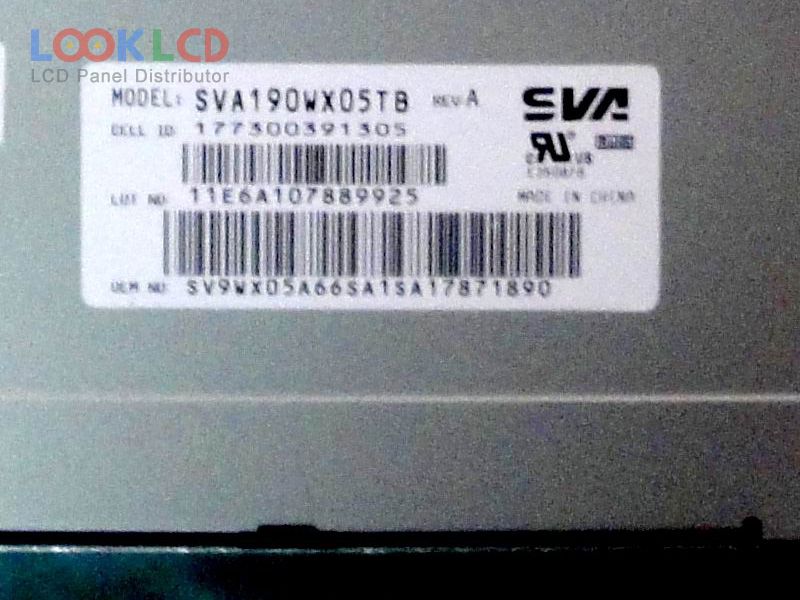

| Broj dijela | SVA190WX05TB |
| Marka | SVA-NEC |
| Veličina | 19.0 |
| Primjena | DMPC |
| Rezolucija | 1440×900 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 1000:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | SVA-NEC |
| panelni model | SVA190WX05TB |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 19.0 inch |
| rezolucija | 1440(RGB)×900 , WXGA+ |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 408.24×255.15 mm |
| obris | 428×278 mm |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 1000:1 (Typ.) |
| boje prikaza | 16.7M (6-bit + Hi-FRC), CIE193172% |
| vrijeme odziva | |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 4 pcsCCFL |
| signalno sučelje | LVDS (2 ch, 8-bit) |
| rohs: | |
| primjena | DMPC |
