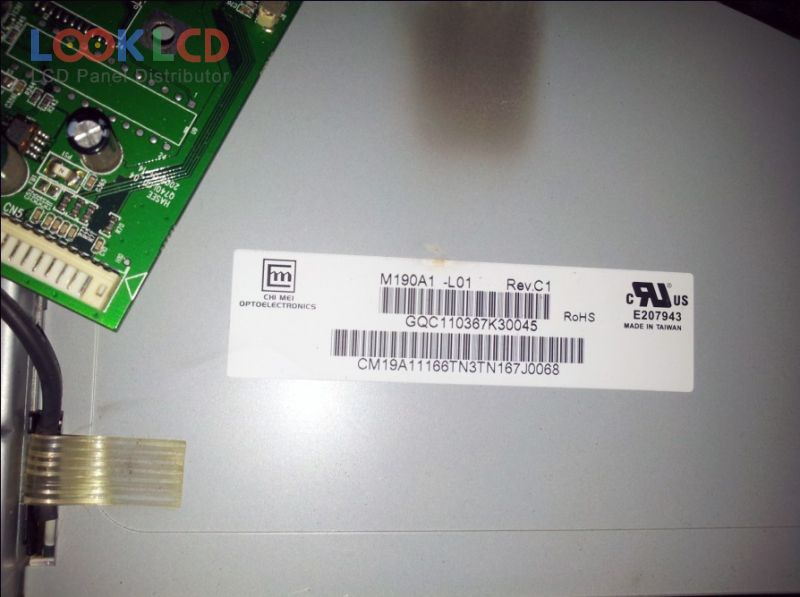

| Broj dijela | M190A1-L01 |
| Marka | Innolux |
| Veličina | 19.0 |
| Primjena | DMPC |
| Rezolucija | 1440×900 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 500:1 |
| Boje | 16.2M |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | CMO |
| panelni model | M190A1-L01 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 19.0 inch |
| rezolucija | 1440(RGB)×900 , WXGA+ |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 410.4×256.5 mm |
| obris | 427.2×277.4×17.5 mm |
| površinski | Antiglare (Haze 25%), Hard coating (3H) |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 16.2M (6-bit + FRC) |
| vrijeme odziva | 2/6 (Typ.)(Tr/Td) |
| kut gledanja | 75/75/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 4 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (2 ch, 8-bit), 30 pins |
| ulazni napon | 5.0V (Typ.) |
| primjena | DMPC |
