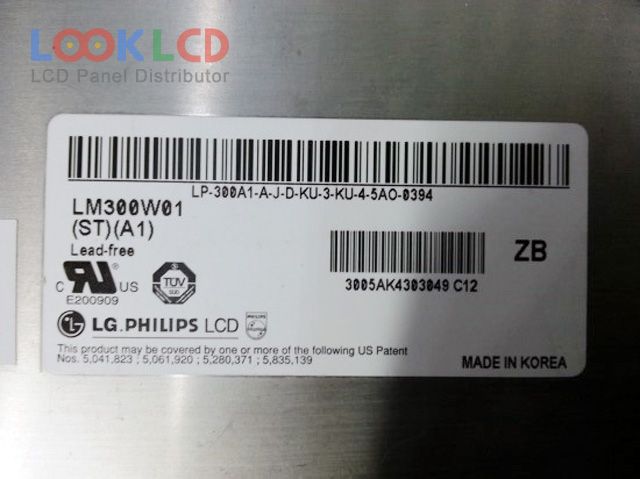

| Broj dijela | LM300W01-STA1 |
| Marka | LG Display |
| Veličina | 30.0 |
| Primjena | DMPC |
| Rezolucija | 2560×1600 |
| Sastav | LCM |
| Svjetlina | 370 |
| CR | 600:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | TMDS |
| marka panela | LG.Philips LCD |
| panelni model | LM300W01-STA1 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 30.0 inch |
| rezolucija | 2560(RGB)×1600 , WQXGA |
| način prikaza | S-IPS, Normally Black, Transmissive |
| aktivno područje | 641.28×400.8 mm |
| obris | 677.3×436.8 mm |
| površinski | Antiglare (Haze 13%), Hard coating (3H) |
| svjetlina | 370 cd/m² (Typ.) |
| omjer kontrasta | 600:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193172% |
| vrijeme odziva | 8/6 (Typ.)(Tr/Td); 11 (Typ.)(G to G) |
| kut gledanja | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 16 pcsCCFLEmbedded (Inverter) |
| signalno sučelje | Dual Link TMDS, 45 pins |
| ulazni napon | 18.0V (Typ.) |
| primjena | DMPC |
