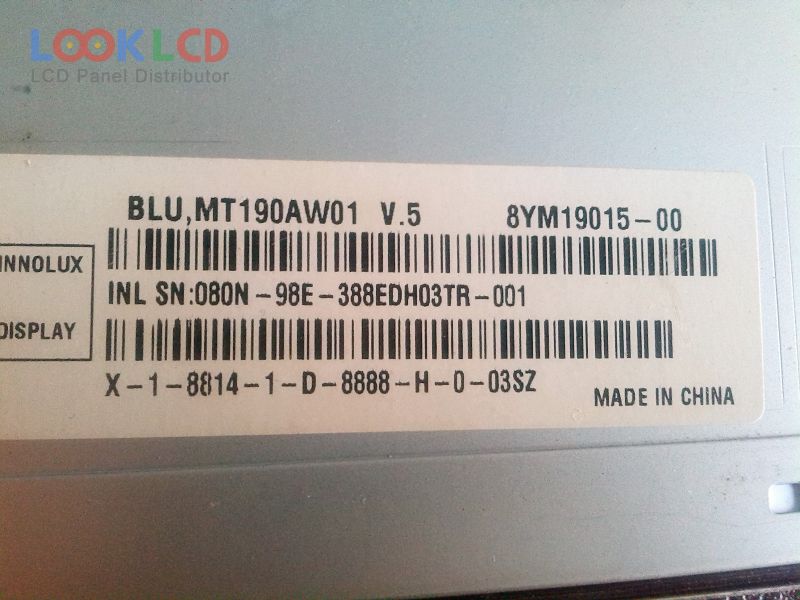

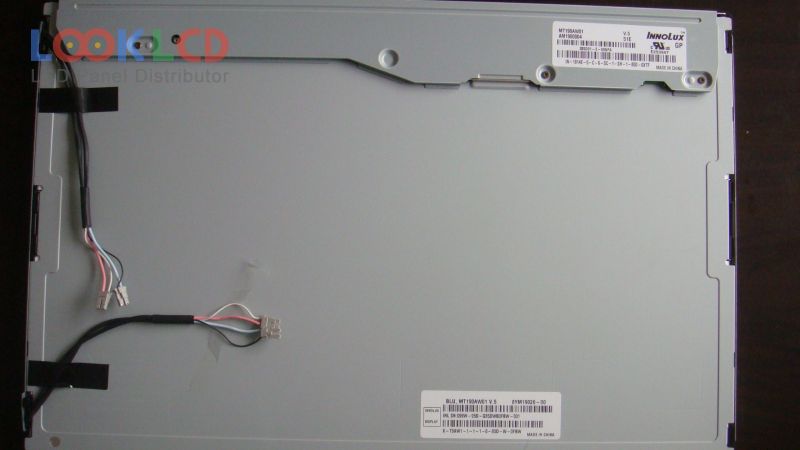

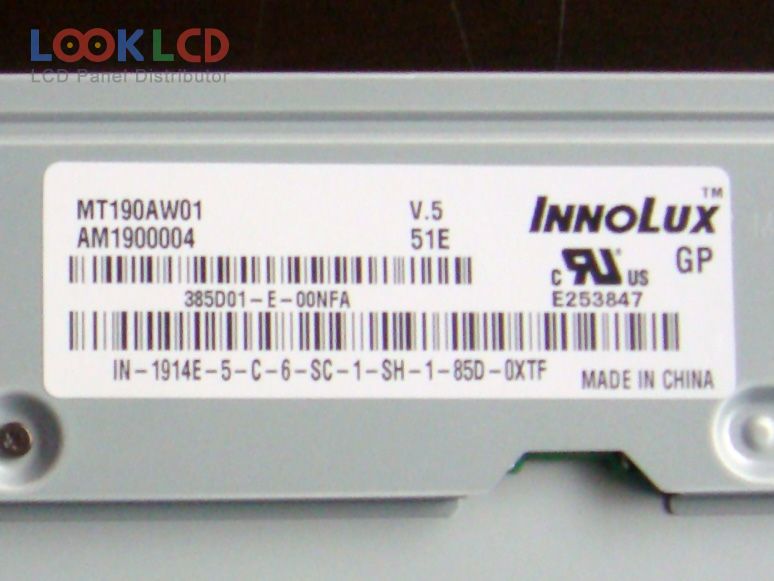

| Broj dijela | MT190AW01 V.5 |
| Marka | Innolux |
| Veličina | 19.0 |
| Primjena | DMPC |
| Rezolucija | 1440×900 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 1000:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | INNOLUX |
| panelni model | MT190AW01 V.5 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 19.0 inch |
| rezolucija | 1440(RGB)×900 , WXGA+ |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 410.4×256.5 mm |
| obris | 427.2×277.4×16.5 mm |
| površinski | Antiglare (Haze 25%), Hard coating (3H) |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 1000:1 (Typ.) |
| boje prikaza | 16.7M (6-bit + Hi-FRC), CIE193174% |
| vrijeme odziva | 1.5/3.5 (Typ.)(Tr/Td) |
| kut gledanja | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 4 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (2 ch, 8-bit), 30 pins |
| ulazni napon | 5.0V (Typ.) |
| primjena | DMPC |
| M190EG01 V0 | AUO | 19.0 | 1280×1024 |
| MT190AW01 V.5 | Innolux | 19.0 | 1440×900 |
| MT190AW01 V.7 | Innolux | 19.0 | 1440×900 |
| MT190AW01 V.C | Innolux | 19.0 | 1440×900 |
| MT190AW02 V.0 | Innolux | 19.0 | 1440×900 |
| MT190AW02 V.4 | Innolux | 19.0 | 1440×900 |
| MT190AW02 V.A | Innolux | 19.0 | 1440×900 |
| MT190AW02 V.V | Innolux | 19.0 | 1440×900 |
| MT190AW02 V.W | Innolux | 19.0 | 1440×900 |
| MT190AW02 V.Y | Innolux | 19.0 | 1440×900 |
| HM215WU1-500 | BOE | 21.5 | 1920×1080 |
| LK235D3HA0S | SHARP | 23.6 | 1920×1080 |
| LM171WX3-TLA1 | LG Display | 17.1 | 1440×900 |
| LM195WD2-SLA1 | LG Display | 19.5 | 1600×900 |
| LM230WF3-SSA1 | LG Display | 23.0 | 1920×1080 |
| M200O3-LA3 | Innolux | 20.0 | 1600×900 |
| M215HW01 V6 | AUO | 21.5 | 1920×1080 |
| M236HJK-L5B | Innolux | 23.6 | 1920×1080 |
| M240HTN01.2 | AUO | 24.0 | 1920×1080 |
| MT190AW02 V.V | Innolux | 19.0 | 1440×900 |
