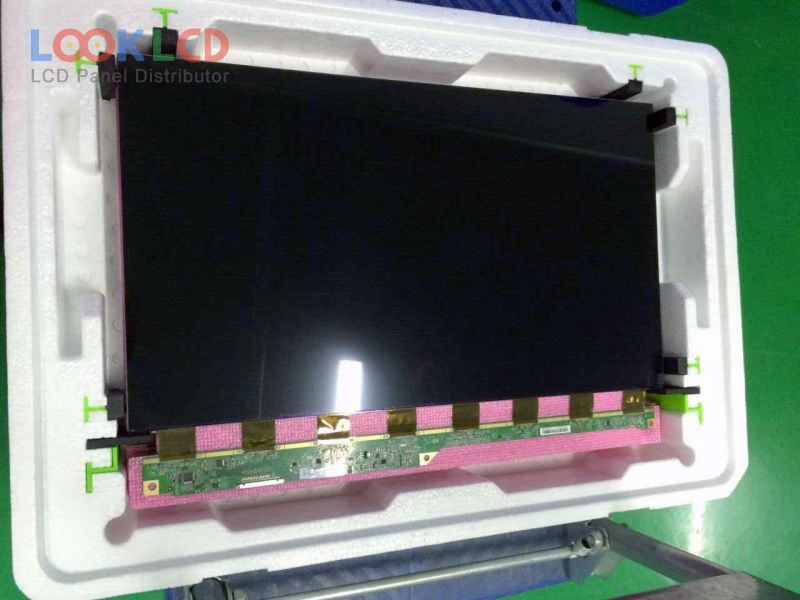

| Broj dijela | MV236FHB-N10 |
| Marka | BOE |
| Veličina | 23.6 |
| Primjena | DMPC |
| Rezolucija | 1920×1080 |
| Sastav | CELL |
| Svjetlina | 0 |
| CR | 1000:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | No B/L |
| Sučelje | LVDS |
| marka panela | BOE |
| panelni model | MV236FHB-N10 |
| vrsta panela | a-Si TFT-LCD , CELL |
| veličina ploče | 23.6 inch |
| rezolucija | 1920(RGB)×1080 , FHD |
| način prikaza | ADS, Normally Black, Transmissive |
| aktivno područje | 521.28×293.22 mm |
| obris | 529.66×303.16 mm |
| površinski | Antiglare (Haze 25%), Hard coating (3H) |
| dubina stakla | 0.50+0.50 mm |
| transmisivnost | 5.3% (Typ.)(with Polarizer) |
| omjer kontrasta | 1000:1 (Typ.) |
| boje prikaza | 16.7M (8-bit) |
| vrijeme odziva | 14 (Typ.)(G to G) |
| kut gledanja | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| signalno sučelje | LVDS (2 ch, 8-bit), 30 pins |
| ulazni napon | 5.0V (Typ.) |
| primjena | DMPC |
