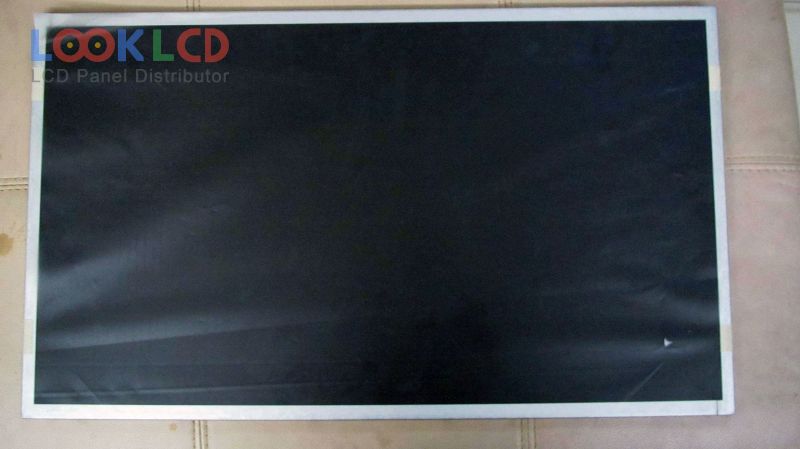

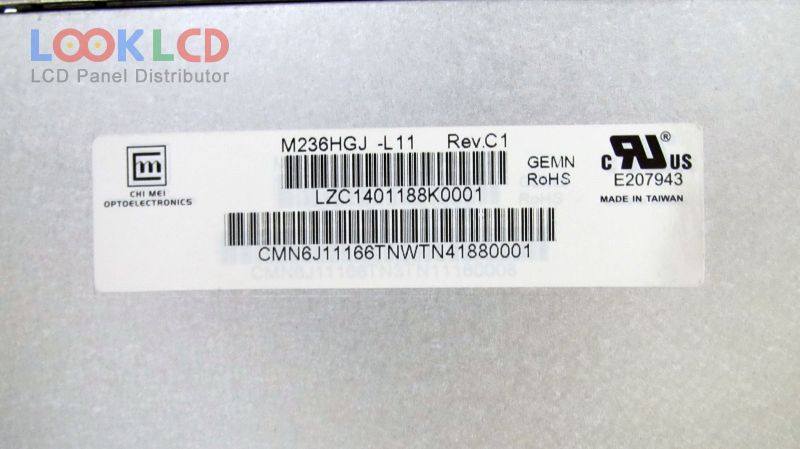

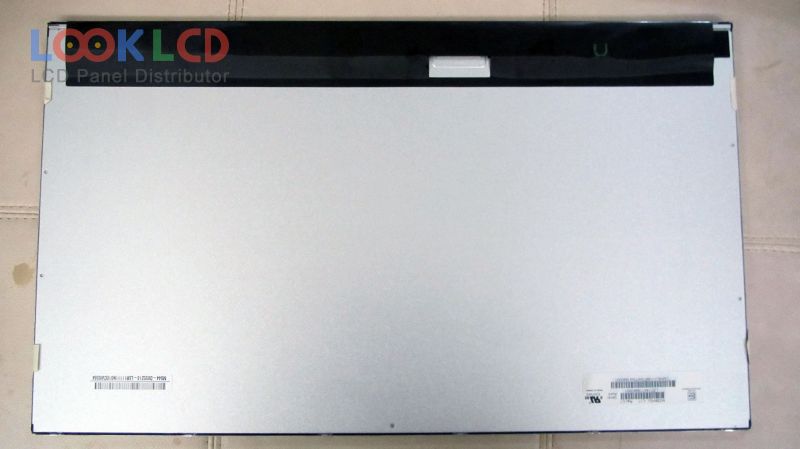

| Broj dijela | M236HGJ-L11 |
| Marka | Innolux |
| Veličina | 23.6 |
| Primjena | DMPC |
| Rezolucija | 1920×1080 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 1000:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | CHIMEI INNOLUX |
| panelni model | M236HGJ-L11 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 23.6 inch |
| rezolucija | 1920(RGB)×1080 , FHD |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 521.28×293.22 mm |
| obris | 544.8×320.5 mm |
| površinski | Antiglare (Haze 25%), Hard coating (3H) |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 1000:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193172% |
| vrijeme odziva | 1.5/3.5 (Typ.)(Tr/Td) |
| kut gledanja | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDWithout Driver |
| signalno sučelje | LVDS (2 ch, 8-bit), 30 pins |
| ulazni napon | 5.0V (Typ.) |
| primjena | DMPC |
| M236H1-L01 | Innolux | 23.6 | 1920×1080 |
| M236H1-L07 | Innolux | 23.6 | 1920×1080 |
| M236H1-P01 | Innolux | 23.6 | 1920×1080 |
| M236H3-LA2 | Innolux | 23.6 | 1920×1080 |
| M236H3-LA3 | Innolux | 23.6 | 1920×1080 |
| M236HGE-L20 | Innolux | 23.6 | 1920×1080 |
| M236HGJ-L11 | Innolux | 23.6 | 1920×1080 |
| M236HGK-L30 | Innolux | 23.6 | 1920×1080 |
| M236HJJ-P02 | Innolux | 23.6 | 1920×1080 |
| M236HJK-L3B | Innolux | 23.6 | 1920×1080 |
| HR215WU1-100 | BOE | 21.5 | 1920×1080 |
| LM170E03-TLB1 | LG Display | 17.0 | 1280×1024 |
| LM185WH1-TLD1 | LG Display | 18.5 | 1366×768 |
| LM200WD3-TLC9 | LG Display | 20.0 | 1600×900 |
| LM201U04-A3KC | LG Display | 20.1 | 1600×1200 |
| LM230WF3-SLE1 | LG Display | 23.0 | 1920×1080 |
| M185BGE-L23 | Innolux | 18.5 | 1366×768 |
| M201P1-L01 | Innolux | 20.1 | 1400×1050 |
| M215XTN01.0 | AUO | 21.5 | 1366×768 |
| M240HVN02.0 | AUO | 24.0 | 1920×1080 |
