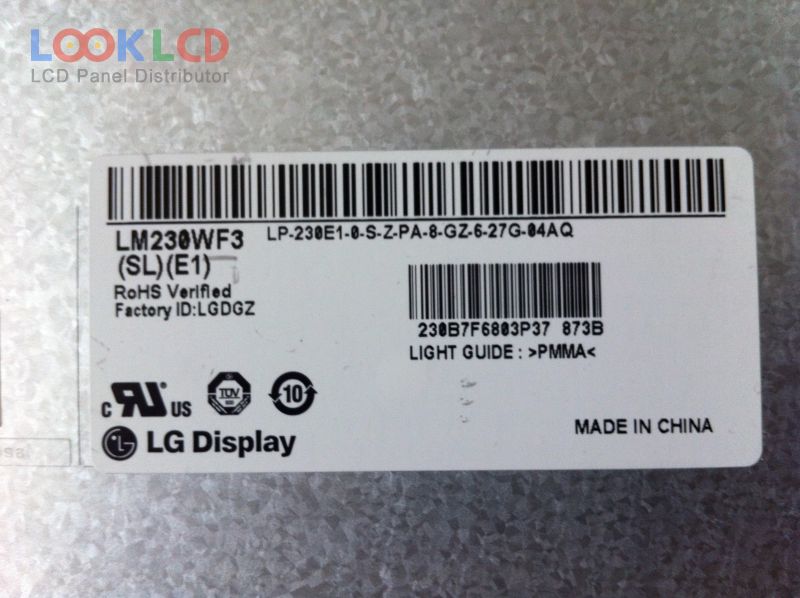

| Broj dijela | LM230WF3-SLE1 |
| Marka | LG Display |
| Veličina | 23.0 |
| Primjena | DMPC |
| Rezolucija | 1920×1080 |
| Sastav | LCM |
| Svjetlina | 250 |
| CR | 1000:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | LG Display |
| panelni model | LM230WF3-SLE1 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 23.0 inch |
| rezolucija | 1920(RGB)×1080 , FHD |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno područje | 509.184×286.416 mm |
| obris | 533.2×312×11 mm |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 250 cd/m² (Typ.) |
| omjer kontrasta | 1000:1 (Typ.) |
| boje prikaza | 16.7M (6-bit + Hi-FRC) |
| vrijeme odziva | 14 (Typ.)(G to G) |
| kut gledanja | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 17S2PWLEDWithout Driver |
| signalno sučelje | LVDS (2 ch, 8-bit), 30 pins |
| ulazni napon | 5.0V (Typ.) |
| primjena | DMPC |
| LM230WF1-TLA3 | LG Display | 23.0 | 1920×1080 |
| LM230WF1-TLA5 | LG Display | 23.0 | 1920×1080 |
| LM230WF3-SLB1 | LG Display | 23.0 | 1920×1080 |
| LM230WF3-SLE1 | LG Display | 23.0 | 1920×1080 |
| LM230WF3-SSA1 | LG Display | 23.0 | 1920×1080 |
| LM230WF4-TLA1 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLD2 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLF4 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TRA2 | LG Display | 23.0 | 1920×1080 |
| LM230WFA-SLZ1 | LG Display | 23.0 | 1920×1080 |
| LM190WX1-TLC1 | LG Display | 19.0 | 1440×900 |
| LM215WF3-SLA1 | LG Display | 21.5 | 1920×1080 |
| LM238WF4-SSA1 | LG Display | 23.8 | 1920×1080 |
| LTM150XO-L01 | Samsung | 15.0 | 1024×768 |
| LTM185AT02 | Samsung | 18.5 | 1366×768 |
| LTM190E4-L03 | Samsung | 19.0 | 1280×1024 |
| LTM220M3-L02 | Samsung | 22.0 | 1680×1050 |
| M201P1-L03 | Innolux | 20.1 | 1400×1050 |
| M220Z1-L01 | Innolux | 22.0 | 1680×1050 |
| M240HW01 VC | AUO | 24.0 | 1920×1080 |
