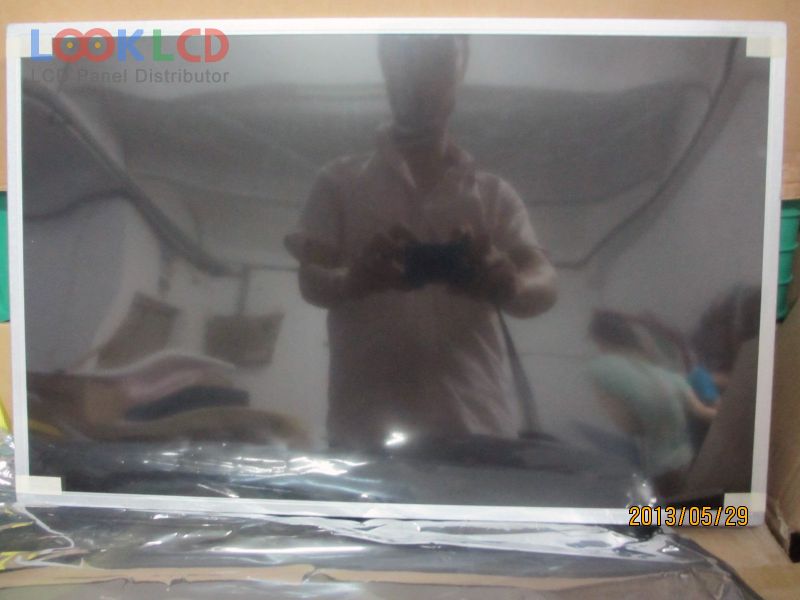

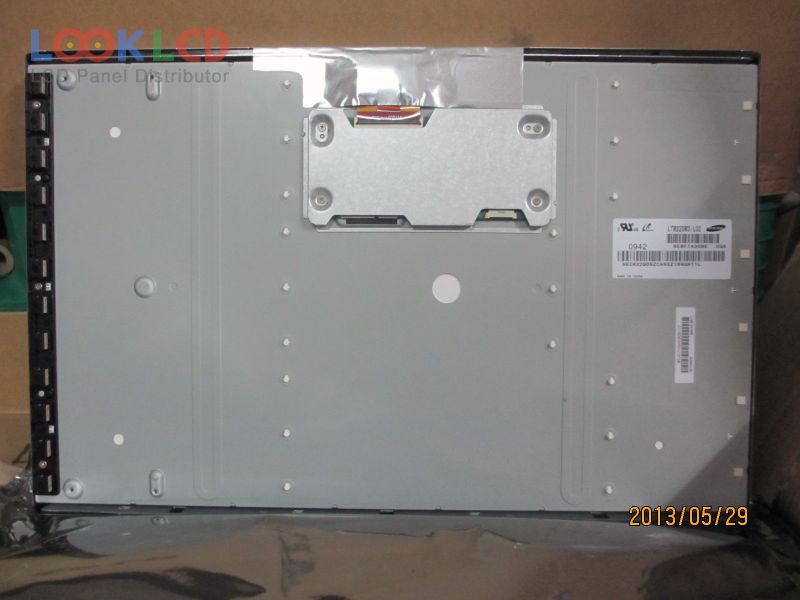

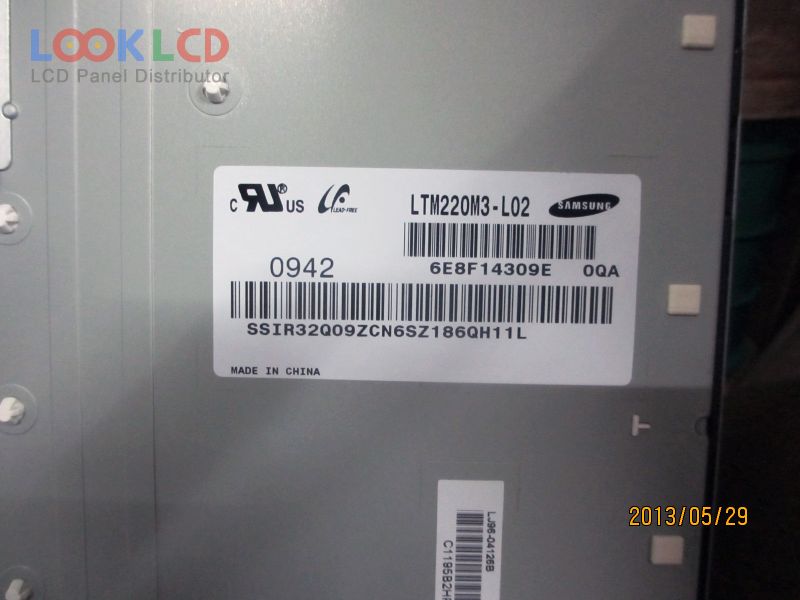

| Broj dijela | LTM220M3-L02 |
| Marka | Samsung |
| Veličina | 22.0 |
| Primjena | DMPC |
| Rezolucija | 1680×1050 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 1000:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | SAMSUNG |
| panelni model | LTM220M3-L02 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 22.0 inch |
| rezolucija | 1680(RGB)×1050 , WSXGA+ |
| način prikaza | S-PVA, Normally Black, Transmissive |
| aktivno područje | 473.76×296.1 mm |
| obris | 497.8×320.1 mm |
| površinski | Antiglare (Haze 44%), Hard coating (3H) |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 1000:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193192% |
| vrijeme odziva | 16 (Typ.)(Tr+Td); 6 (Typ.)(G to G) |
| kut gledanja | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 6 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (2 ch, 8-bit), 30 pins |
| ulazni napon | 5.0V (Typ.) |
| primjena | DMPC |
