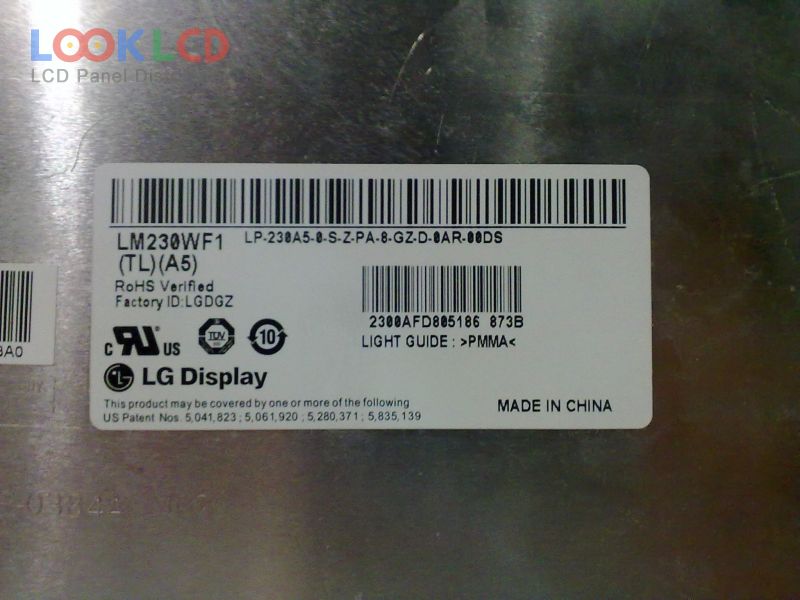

| Broj dijela | LM230WF1-TLA5 |
| Marka | LG Display |
| Veličina | 23.0 |
| Primjena | DMPC |
| Rezolucija | 1920×1080 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 1000:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | LG Display |
| panelni model | LM230WF1-TLA5 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 23.0 inch |
| rezolucija | 1920(RGB)×1080 , FHD |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 509.184×286.416 mm |
| obris | 533.2×312×17 mm |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 1000:1 (Typ.) |
| boje prikaza | 16.7M (6-bit + Hi-FRC), CIE193172% |
| vrijeme odziva | 1.3/3.7 (Typ.)(Tr/Td) |
| kut gledanja | 85/85/75/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 4 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (2 ch, 8-bit), 30 pins |
| ulazni napon | 5.0V (Typ.) |
| primjena | DMPC |
