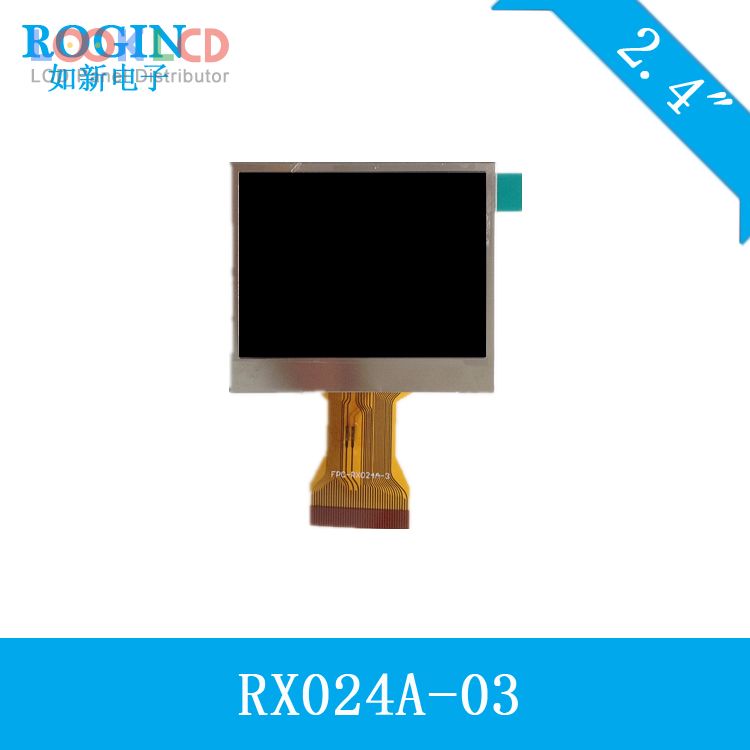

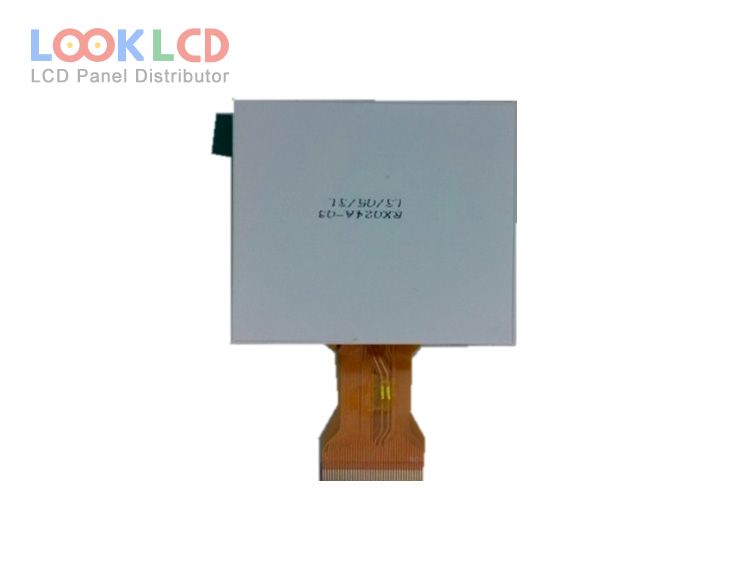

| Broj dijela | RX024A-03 |
| Marka | ROGIN |
| Veličina | 2.4 |
| Primjena | IA |
| Rezolucija | 480×234 |
| Sastav | LCM |
| Svjetlina | 200 |
| CR | 400:1 |
| Boje | |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | Serial RGB |
| marka panela | ROGIN |
| panelni model | RX024A-03 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 2.4 inch |
| rezolucija | 480×234 |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 48×35.685 mm |
| obris | 54.8×47.15×2.9 mm |
| površinski | |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | , CIE193145% |
| vrijeme odziva | 30 (Typ.)(Tr+Td) |
| kut gledanja | 65/65/50/65 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 2 pcsWLEDWithout Driver |
| signalno sučelje | Serial RGB (8-bit) + SPI, 40 pins |
| ulazni napon | 3.3/3.3V (Typ.)(VCC/IOVCC) |
| primjena | IA |
