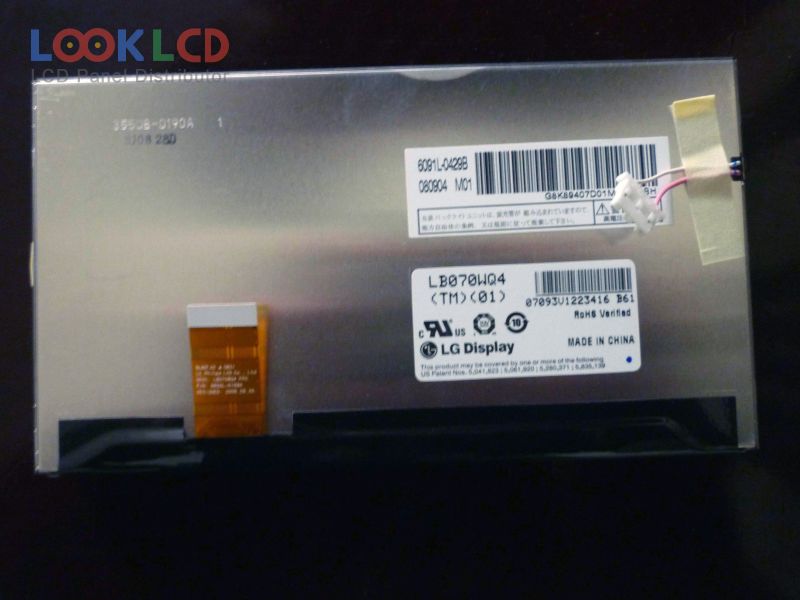

| Broj dijela | LB070WQ4-TM01 |
| Marka | LG Display |
| Veličina | 7.0 |
| Primjena | CNS |
| Rezolucija | 480×234 |
| Sastav | LCM |
| Svjetlina | 450 |
| CR | 400:1 |
| Boje | Full color |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | Analog |
| marka panela | LG.Philips LCD |
| panelni model | LB070WQ4-TM01 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 480(RGB)×234 |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 156.24×82.368 mm |
| obris | 167×93×7.8 mm |
| površinski | Antiglare |
| svjetlina | 450 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | Full color , CIE193145% |
| vrijeme odziva | 50/75 (Max.)(Tr/Td) |
| kut gledanja | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | TFT Specific Analog RGB, 30 pins |
| ulazni napon | 3.3/5.0/18.5/-12.0V (Typ.)(VDD1/VDD2/VGH/VGL) |
| primjena | CNS |
