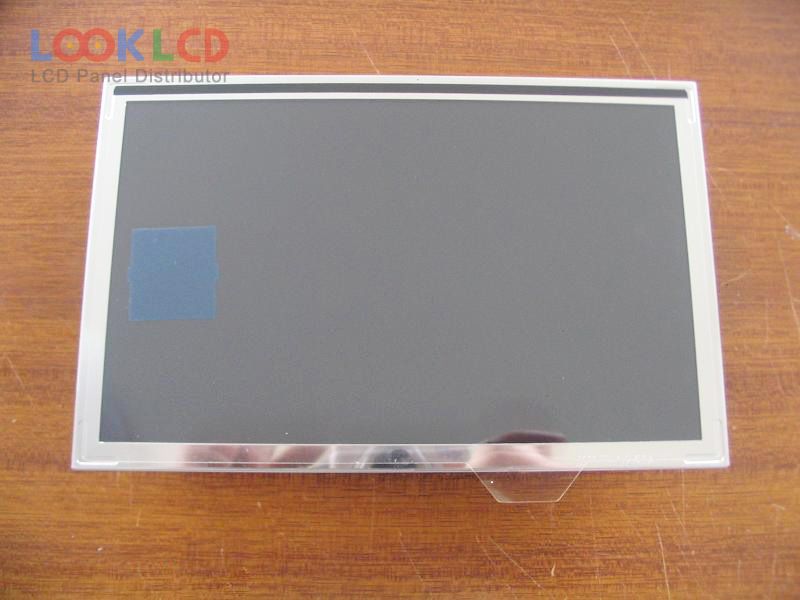

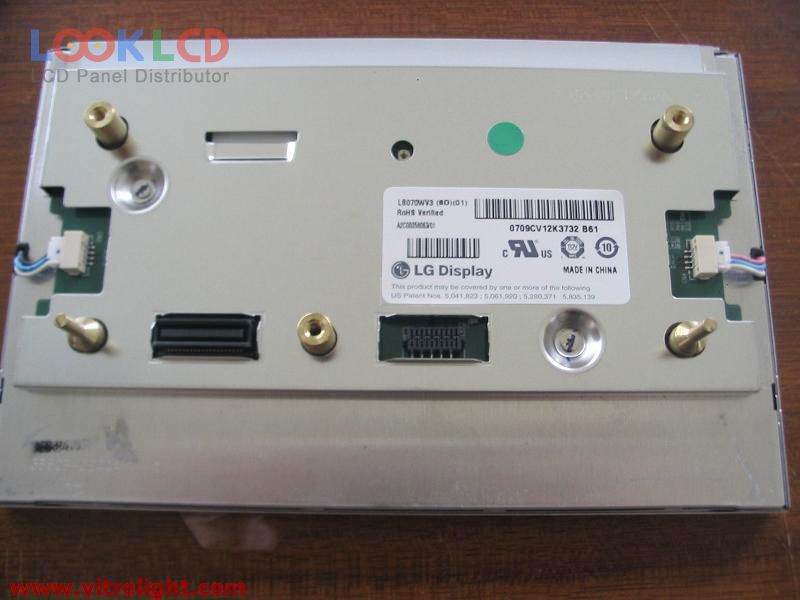

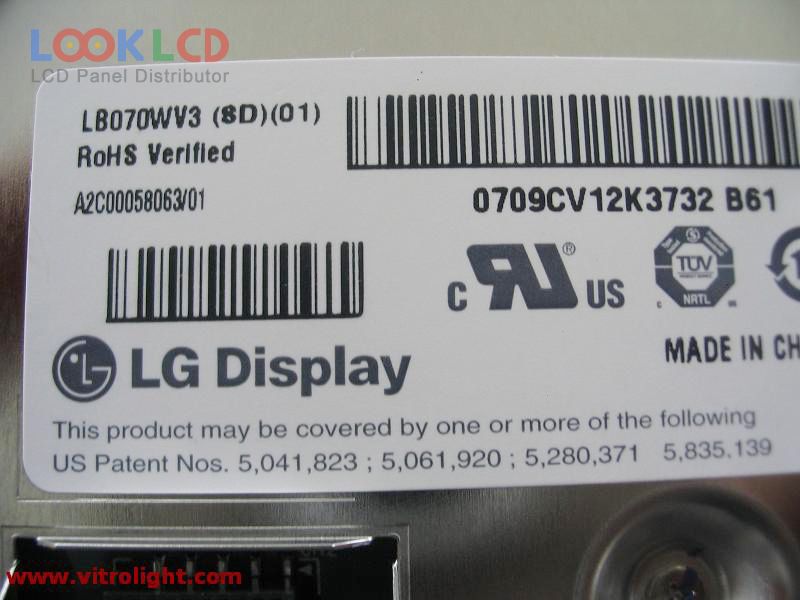

| Broj dijela | LB070WV3-SD01 |
| Marka | LG Display |
| Veličina | 7.0 |
| Primjena | CNS |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | 470 |
| CR | 900:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | LG Display |
| panelni model | LB070WV3-SD01 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno područje | 152.4×91.44 mm |
| obris | 170×109.6×29.4 mm |
| površinski | Antiglare, Antireflection |
| svjetlina | 470 cd/m² (Typ.) |
| omjer kontrasta | 900:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193160% |
| vrijeme odziva | 15/14 (Typ.)(Tr/Td) |
| kut gledanja | 70/70/30/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 8S3PWLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | CNS |
