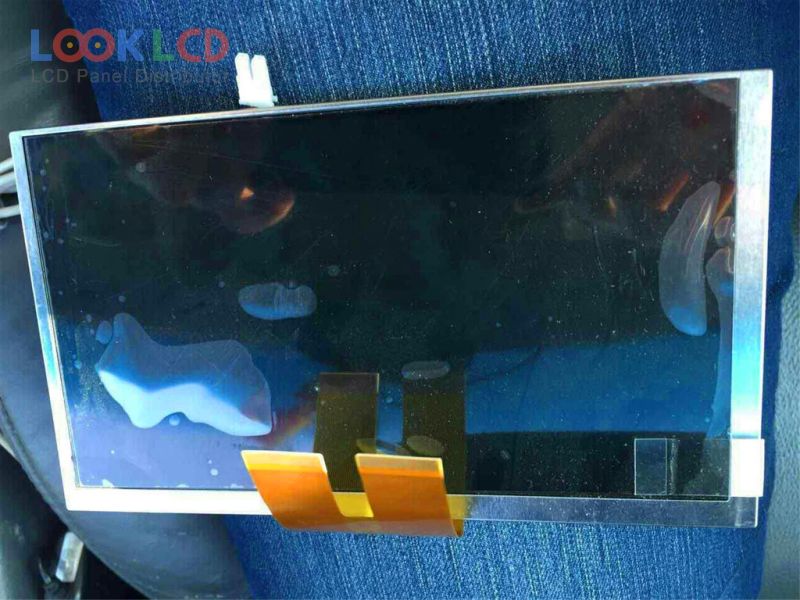

| Broj dijela | PM065WX3 |
| Marka | E Ink |
| Veličina | 6.5 |
| Primjena | CNS |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | 550 |
| CR | 400:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | PVI |
| panelni model | PM065WX3 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 6.5 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 143.4×79.2 mm |
| obris | 155.2×89.4×6.1 mm |
| površinski | Antiglare |
| svjetlina | 550 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 15/25 (Typ.)(Tr/Td) |
| kut gledanja | 75/75/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 3S14PWLEDWithout Driver |
| signalno sučelje | TTL (1 ch, 6-bit), 60 pins |
| ulazni napon | 3.3/3.3/9.5/17.0/-8.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE) |
| primjena | CNS |
