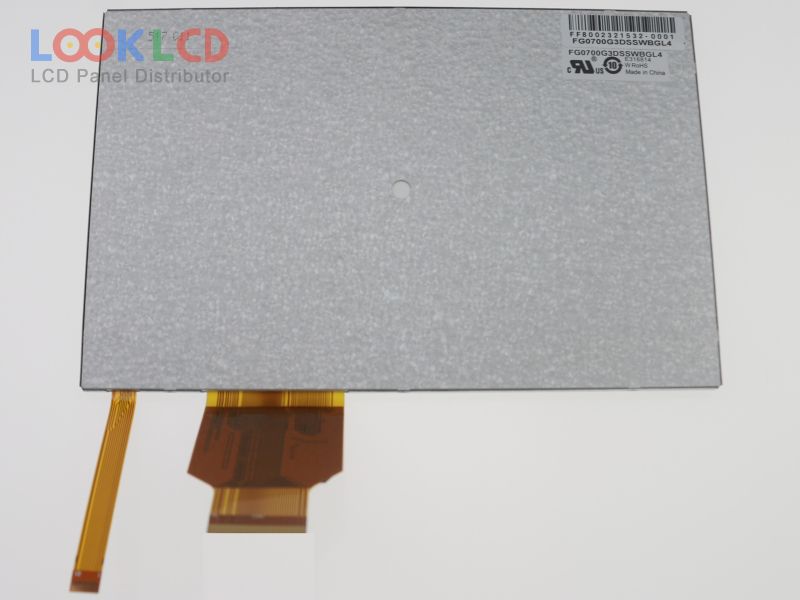

| Broj dijela | FG0700G3DSSWBGL4 |
| Marka | Data Image |
| Veličina | 7.0 |
| Primjena | CNS |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | 900 |
| CR | 600:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | Data Image |
| panelni model | FG0700G3DSSWBGL4 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 152.4×91.44 mm |
| obris | 165×106.4 mm |
| površinski | |
| svjetlina | 900 cd/m² (Typ.) |
| omjer kontrasta | 600:1 (Typ.) |
| boje prikaza | 16.7M (8-bit) |
| vrijeme odziva | 5/15 (Typ.)(Tr/Td) |
| kut gledanja | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 3S10PWLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 8-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | CNS |
