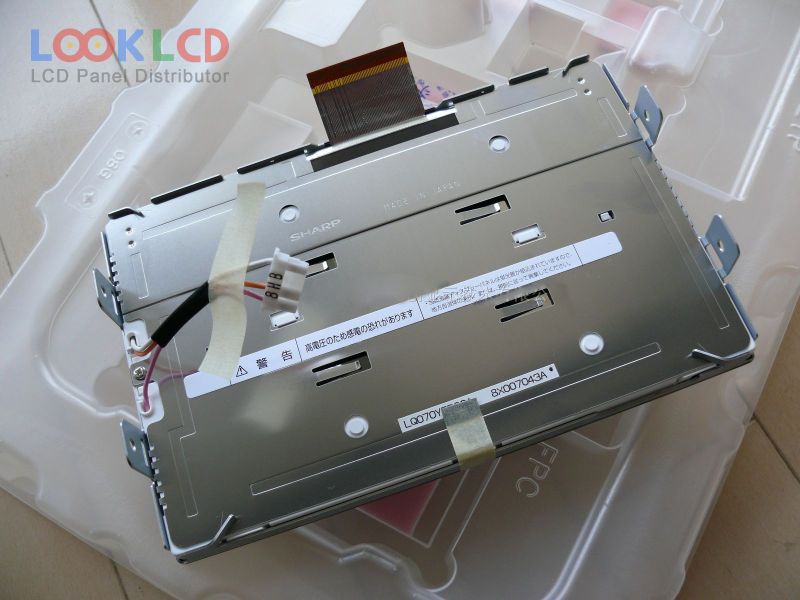

| Broj dijela | LQ070Y5DG01 |
| Marka | SHARP |
| Veličina | 7.0 |
| Primjena | CNS |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | 530 |
| CR | 250:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | TTL |
| marka panela | SHARP |
| panelni model | LQ070Y5DG01 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 152.4×91.44 mm |
| obris | 172.2×110.5×25 mm |
| površinski | Antiglare, Antireflection |
| svjetlina | 530 cd/m² (Typ.) |
| omjer kontrasta | 250:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 10/20 (Typ.)(Tr/Td) |
| kut gledanja | 60/60/35/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 2 pcsCCFLWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit), 60 pins |
| ulazni napon | 5.3/3.3/13.0/-11.7/-13.7/-17.0V (Typ.)(VLS/VSH/VDD/VEE/VCC/VSS) |
| primjena | CNS |
