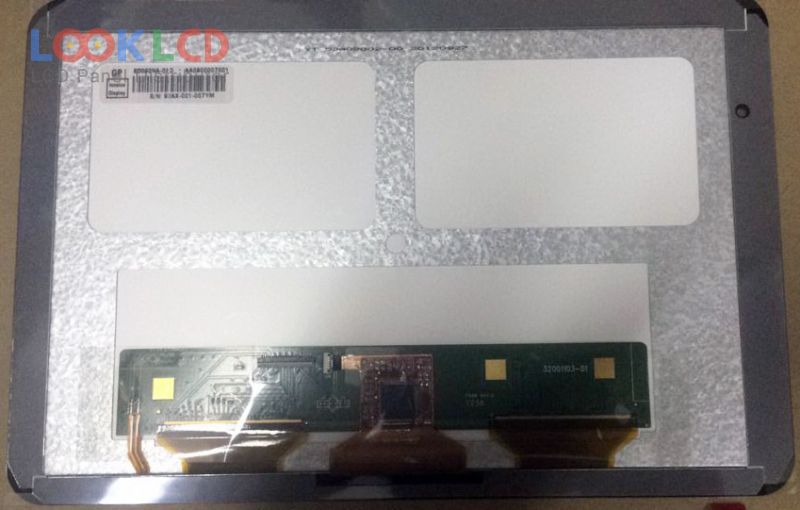

| Broj dijela | ED090NA-01D |
| Marka | Innolux |
| Veličina | 9.0 |
| Primjena | PAD |
| Rezolucija | 1280×800 |
| Sastav | Assembly |
| Svjetlina | 200 |
| CR | 700:1 |
| Boje | 262K/16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | CHIMEI INNOLUX |
| panelni model | ED090NA-01D |
| vrsta panela | a-Si TFT-LCD , Assembly |
| veličina ploče | 9.0 inch |
| rezolucija | 1280(RGB)×800 , WXGA |
| aktivno područje | 193.92×121.2 mm |
| obris | 235.12×156.4×7.84 mm |
| površinski | Hard coating (7H) |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 700:1 (Typ.) |
| boje prikaza | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| kut gledanja | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| signalno sučelje | LVDS (1 ch, 6/8-bit), 51 pins |
| ulazni napon | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| primjena | PAD |
