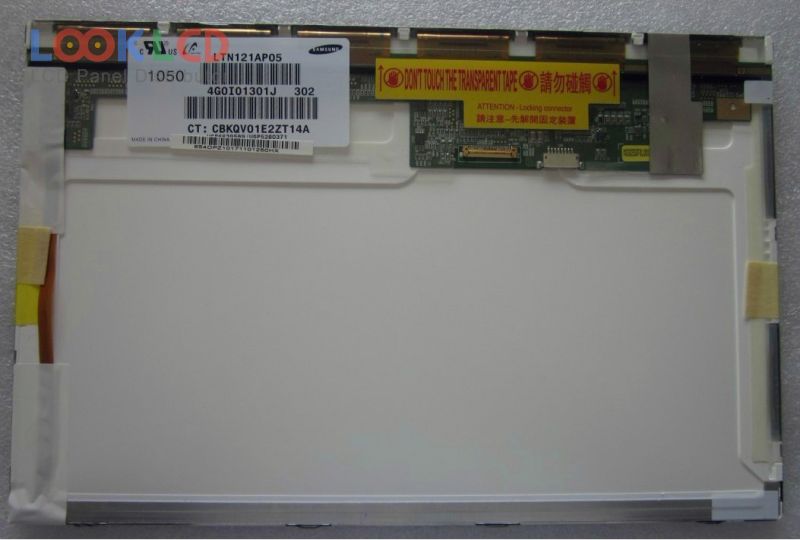

| Broj dijela | LTN121AP05-302 |
| Marka | Samsung |
| Veličina | 12.1 |
| Primjena | PAD |
| Rezolucija | 1280×800 |
| Sastav | LCM |
| Svjetlina | 200 |
| CR | 500:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | eDP |
| marka panela | SAMSUNG |
| panelni model | LTN121AP05-302 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 12.1 inch |
| rezolucija | 1280(RGB)×800 , WXGA |
| način prikaza | PVA, Normally Black, Transmissive |
| aktivno područje | 261.12×163.2 mm |
| obris | 276.8×180×6.8 mm |
| površinski | Antiglare (Haze 25%), Hard coating (3H) |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 25 (Typ.)(Tr+Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | eDP (1 Lane), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | PAD |
