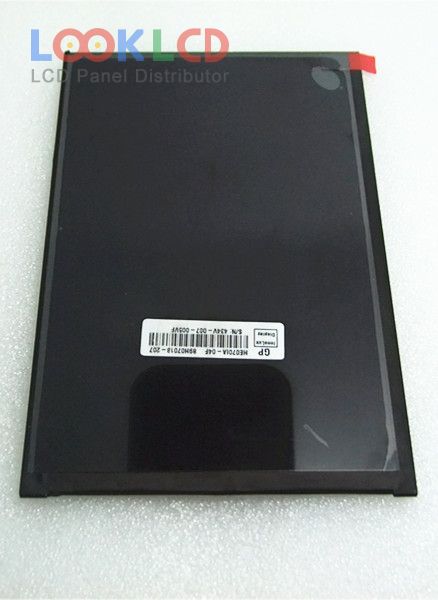

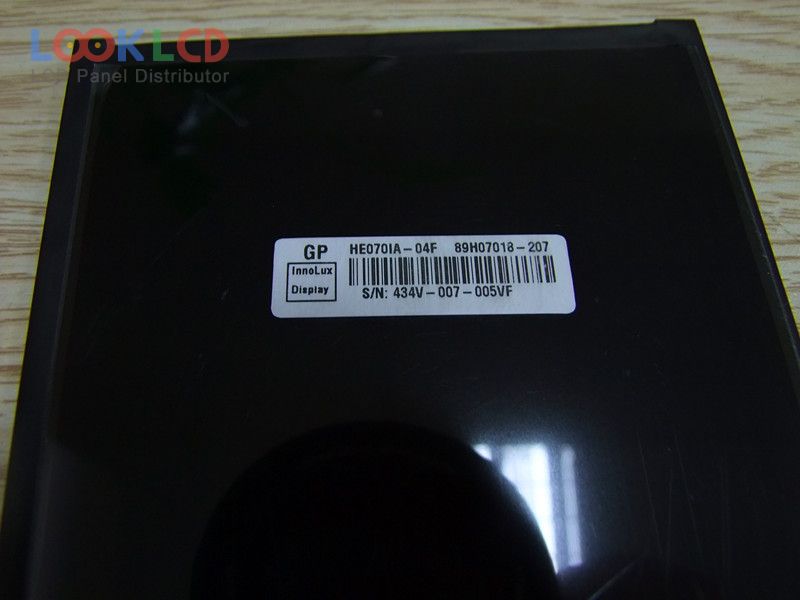

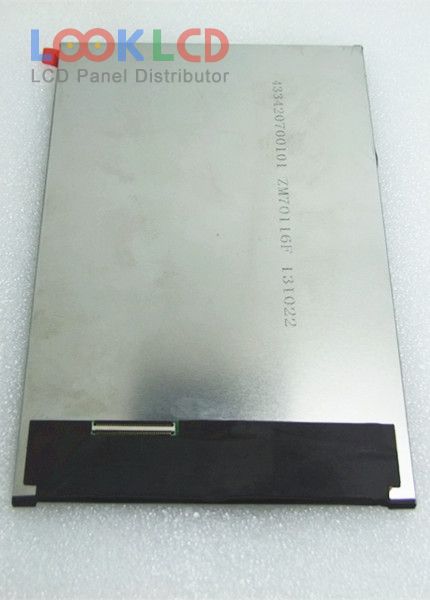

| Broj dijela | HE070IA-04F |
| Marka | Innolux |
| Veličina | 7.0 |
| Primjena | PAD |
| Rezolucija | 800×1280 |
| Sastav | CELL |
| Svjetlina | 0 |
| CR | 800:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | No B/L |
| Sučelje | LVDS |
| marka panela | CHIMEI INNOLUX |
| panelni model | HE070IA-04F |
| vrsta panela | a-Si TFT-LCD , CELL |
| veličina ploče | 7.0 inch |
| rezolucija | 800(RGB)×1280 , WXGA |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno područje | 94.2×150.72 mm |
| obris | 101.5×159.52×0.82 mm |
| površinski | Hard coating |
| dubina stakla | 0.25+0.25 mm |
| transmisivnost | 4.96% (Typ.)(with Polarizer) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193160% |
| vrijeme odziva | 50 (Typ.)(Tr+Td) |
| kut gledanja | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| signalno sučelje | LVDS (1 ch, 8-bit), 40 pins |
| ulazni napon | 3.3/8.8/-7.0/22V (Typ.)(VDD/AVDD/VGH/VGL) |
| primjena | PAD |
