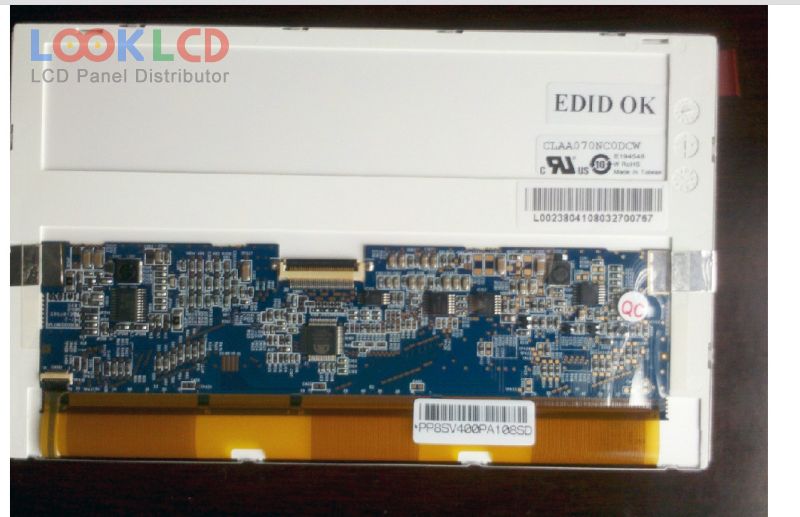

| Broj dijela | CLAA070NC0DCW |
| Marka | CPT |
| Veličina | 7.0 |
| Primjena | UMPC |
| Rezolucija | 1024×600 |
| Sastav | LCM |
| Svjetlina | 375 |
| CR | 400:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | CPT |
| panelni model | CLAA070NC0DCW 1 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 1024(RGB)×600 , WSVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 153.6×90 mm |
| obris | 165×102×5.2 mm |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 375 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193150% |
| vrijeme odziva | 20 (Typ.)(Tr+Td) |
| kut gledanja | 70/70/40/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (1 ch, 6-bit), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | UMPC |
| CLAA070LC0CCW | CPT | 7.0 | 800×480 |
| CLAA070LF05CW | CPT | 7.0 | 800×480 |
| CLAA070LFB1 CW | CPT | 7.0 | 800×480 |
| CLAA070MA0ACW | CPT | 7.0 | 800×600 |
| CLAA070MA21BW | CPT | 7.0 | 800×600 |
| CLAA070ND23CW | CPT | 7.0 | 1024×600 |
| CLAA070ND26CW | CPT | 7.0 | 1024×600 |
| CLAA070ND36CW | CPT | 7.0 | 1024×600 |
| CLAA070WA01 | CPT | 7.0 | 480×234 |
| CLAA070WP03 | CPT | 7.0 | 800×1280 |
| BP070WX1-100 | BOE | 7.0 | 1280×800 |
| CLAA080UA01 | CPT | 8.0 | 1600×768 |
| HJ070IA-02F | Innolux | 7.0 | 1280×800 |
| HV056WX1-100 | HYDIS | 5.6 | 1280×800 |
| HV056WX1-101 | HYDIS | 5.6 | 1280×800 |
| HV070WSA-100 | BOE | 7.0 | 1024×600 |
| LD070WS2-SL07 | LG Display | 7.0 | 1024×600 |
| LQ050W1LA0A | SHARP | 5.0 | 1024×600 |
| LTD056ET2F | TOSHIBA | 5.6 | 1024×600 |
| N070ICG-LD3 | Innolux | 7.0 | 1280×800 |
