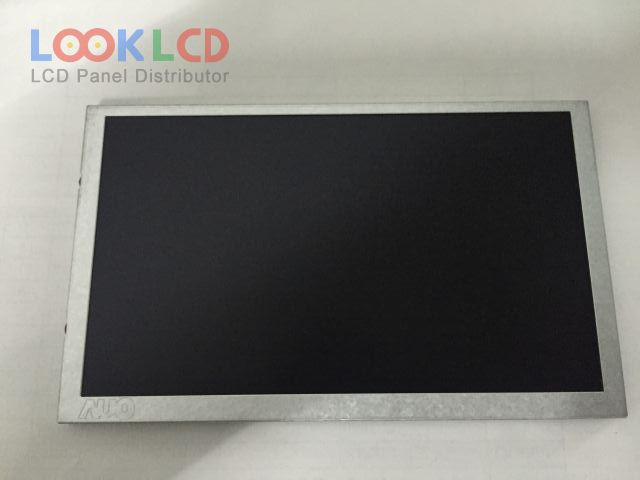

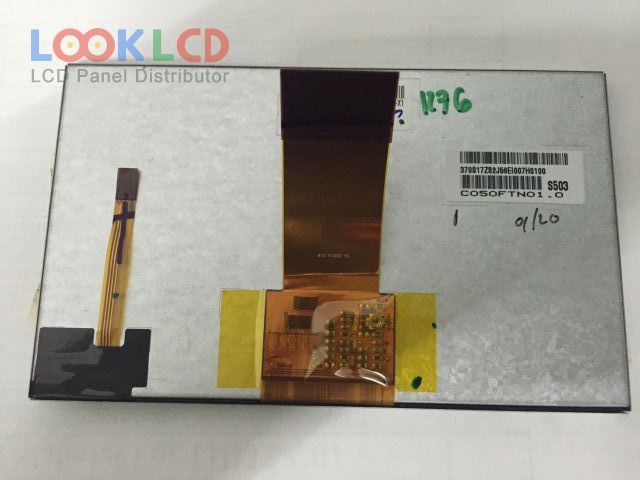

| Broj dijela | C050FTN01.0 |
| Marka | AUO |
| Veličina | 5.0 |
| Primjena | CNS |
| Rezolucija | 480×234 |
| Sastav | LCM |
| Svjetlina | 1100 |
| CR | 600:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | AUO |
| panelni model | C050FTN01.0 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 5.0 inch |
| rezolucija | 480(RGB)×234 |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 110.88×62.478 mm |
| obris | 124×75.36×8.25 mm |
| površinski | |
| svjetlina | 1100 cd/m² (Typ.) |
| omjer kontrasta | 600:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193165% |
| vrijeme odziva | 16 (Typ.)(Tr+Td) |
| kut gledanja | 60/60/60/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 5S2PWLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 8-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | CNS |
