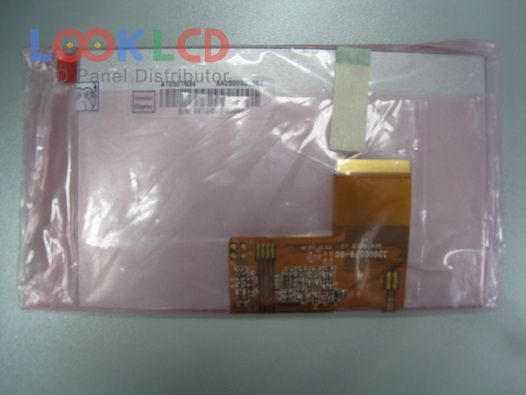

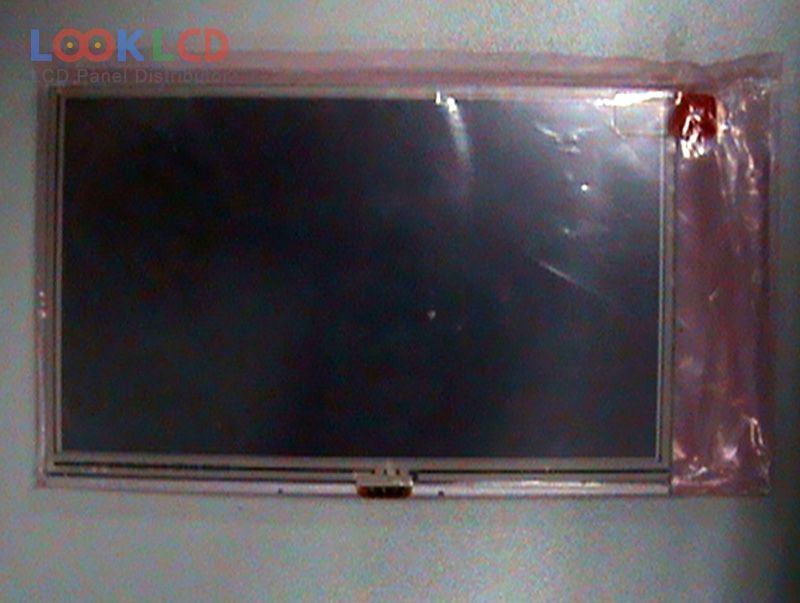

| Broj dijela | AT050TN34 |
| Marka | Innolux |
| Veličina | 5.0 |
| Primjena | PND |
| Rezolucija | 480×272 |
| Sastav | LCM |
| Svjetlina | 400 |
| CR | 500:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | INNOLUX |
| panelni model | AT050TN34 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 5.0 inch |
| rezolucija | 480(RGB)×272 , WQVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 110.88×62.832 mm |
| obris | 120.7×75.8×4.45 mm |
| površinski | Antiglare |
| svjetlina | 400 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 16.7M (8-bit) |
| vrijeme odziva | 10/15 (Typ.)(Tr/Td) |
| kut gledanja | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 6S2PWLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 8-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | PND |
