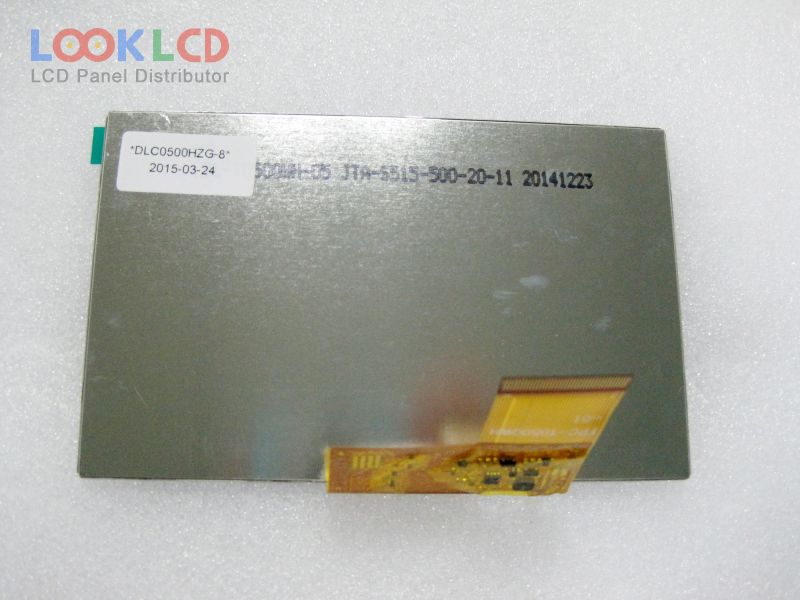

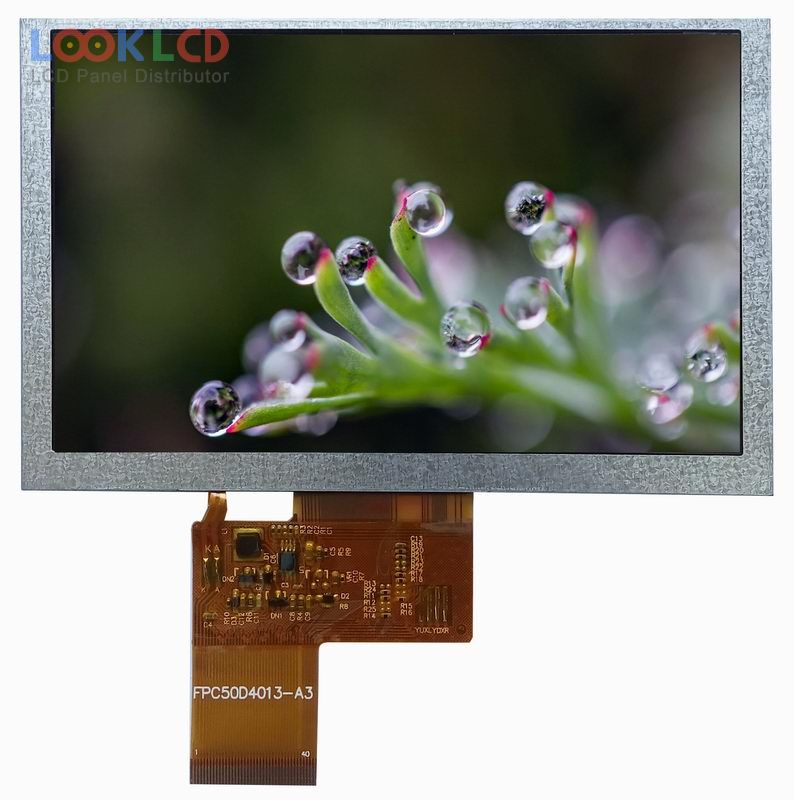

| Broj dijela | DLC0500HZG-8 |
| Marka | Other |
| Veličina | 5.0 |
| Primjena | PND |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | 800 |
| CR | 500:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | DLC |
| panelni model | DLC0500HZG-8 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 5.0 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 108×64.8 mm |
| obris | 120.7×75.8×3.1 mm |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 800 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193150% |
| vrijeme odziva | 20 (Typ.)(Tr+Td) |
| kut gledanja | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 10S2PWLEDWithout Driver |

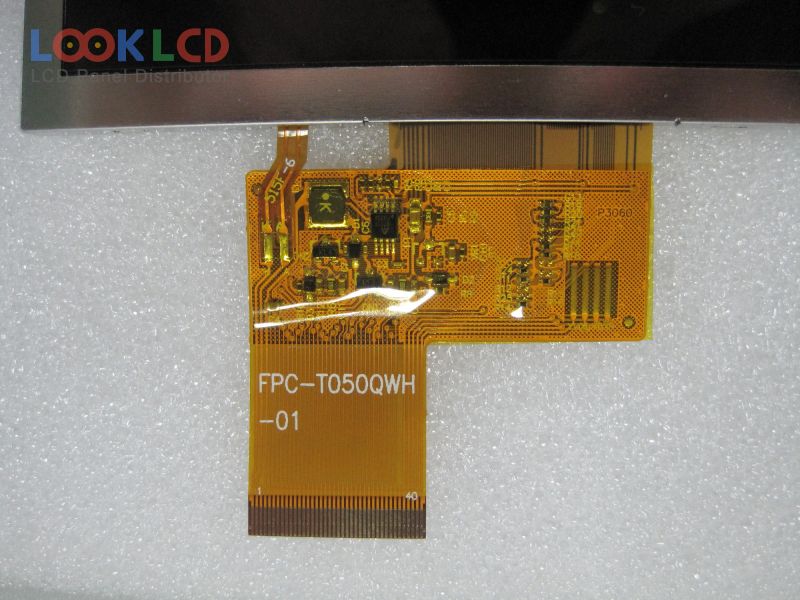

| signalno sučelje | Parallel RGB (1 ch, 8-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | PND |
