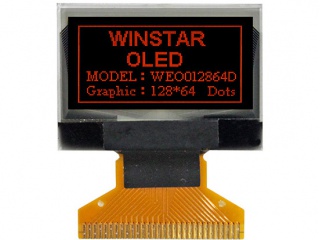

| Broj dijela | WEO012864DR |
| Marka | Winstar |
| Veličina | 0.96 |
| Primjena | Handheld & PDA H |
| Rezolucija | 128×64 |
| Sastav | PM-OLED, OLED |
| Svjetlina | |
| CR | |
| Boje | Mono(Red) |
| Pozadinsko osvjetljenje | self |
| Sučelje | 8-bit |
| marka panela | Winstar |
| panelni model | WEO012864DR |
| veličina ploče | 0.96" |
| vrsta panela | PM-OLED, OLED |
| rezolucija | 128×64, 149PPI |
| format piksela | Rectangle |
| područje prikaza | 21.738(W)×10.858(H) mm |
| otvor za okvir | 23.938(W)×12.058(H) mm |

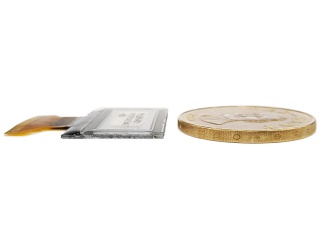

| veličina obrisa | 26.7(W)×19.26(H) ×1.81(D) mm |
| površinski | - |
| kut gledanja | - |
| način prikaza | - |
| najbolji pogled na | Symmetry |
| vrijeme odziva | - |
| boje prikaza | Mono(Red) |
| tip svjetiljke | self |
| frekvencija | - |
| ekran na dodir | Without |
| vozač ic | COG Built-in SSD1306BZ |
| težina panela | - |
| primjena | Handheld & PDA Healthcare Instruments & Meters |
| signalno sučelje | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 30 pins FPC |
| ulazni napon | 3.0V (Typ.) |
| IROP018-010-0128064-W | Other | 0.96 | 128×64 |
| L3P10Y-81G00 | Epson | 0.96 | 1400×1050 |
| OEL9M0083-B-E | Other | 0.96 | 128×64 |
| OEL9M0083-G-E | Other | 0.96 | 128×64 |
| OEL9M0083-R-E | Other | 0.96 | 128×64 |
| OEL9M0083-W-E | Other | 0.96 | 128×64 |
| OEL9M0083-Y-E | Other | 0.96 | 128×64 |
| RGS10128064WR010 | RiTdisplay | 0.96 | 128×64 |
| UG-2864HMBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864HSWEG01 | WiseChip | 0.96 | 128×64 |
