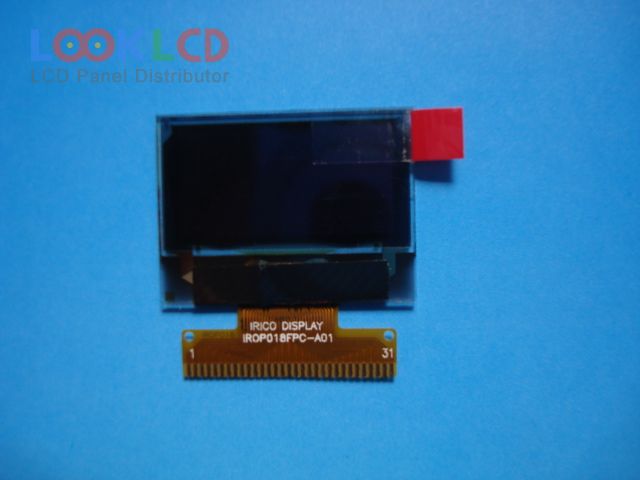

IROP018-010-0128064-W


Marka
Other
Veličina
0.96
Primjena
MPH
Rezolucija
128×64
Sastav
OLED
Svjetlina
100
CR
2000:1
Boje
Mono(White)
Pozadinsko osvjetljenje
self
Sučelje
CPU/SPI/I²C
In Stock
19441
Tehnički podaci

Broj dijela IROP018-010-0128064-W
MarkaOther
Veličina0.96
PrimjenaMPH
Rezolucija128×64
SastavOLED
Svjetlina100
CR2000:1
BojeMono(White)
Pozadinsko osvjetljenjeself
SučeljeCPU/SPI/I²C
marka panelaIRICO
panelni modelIROP018-010-0128064-W
vrsta panela PM-OLED , OLED
veličina ploče0.96 inch
rezolucija128×64
aktivno područje21.74×10.86 mm
obris26.4×19.7×1.36 mm
površinskiAntiglare
svjetlina100 cd/m² (Typ.)
omjer kontrasta2000 : 1 (Min.)
boje prikazaMono(White) (1-bit)
kut gledanja80/80/80/80 (Min.)(CR≥10)(L/R/U/D)
vozač icCOG Built-in SEPS200A
signalno sučelje8-bit 6800/8080 parallel, SPI, I²C, 31 pins
ulazni napon2.8/12.0V (Typ.)(VDD/VCC)
primjenaMPH
