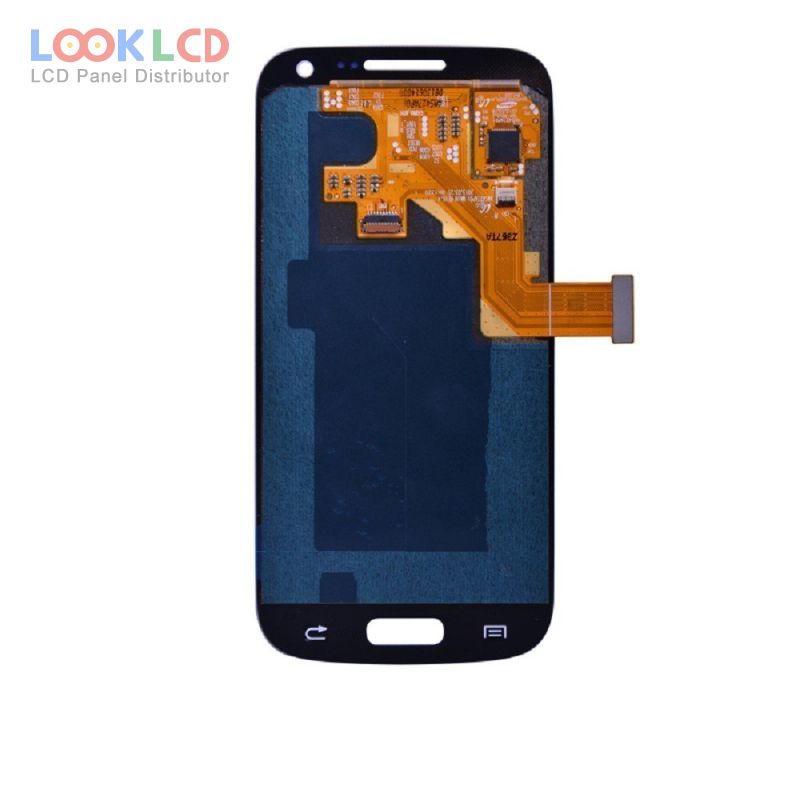

| Broj dijela | AMS427GL45-0 |
| Marka | Samsung |
| Veličina | 4.3 |
| Primjena | MPH |
| Rezolucija | 480×800 |
| Sastav | Assembly |
| Svjetlina | 300 |
| CR | 10000:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | self |
| Sučelje | TTL |
| marka panela | SAMSUNG SMD |
| panelni model | AMS427GL45-0 |
| vrsta panela | AM-OLED , Assembly |
| veličina ploče | 4.3 inch |
| rezolucija | 480(RGB)×800 , WVGA |
| aktivno područje | 55.8×93 mm |
| obris | 62.68×121.93 mm |
| površinski | Hard coating |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 10000 : 1 (Min.) |
| boje prikaza | 16.7M (8-bit), CIE1931106% |
| kut gledanja | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| signalno sučelje | Parallel RGB (1 ch, 8-bit) + SPI, 54 pins |
| ulazni napon | 1.8/3.0/3.8V (Typ.)(VDD3/VCI/VBAT) |
| primjena | MPH |
