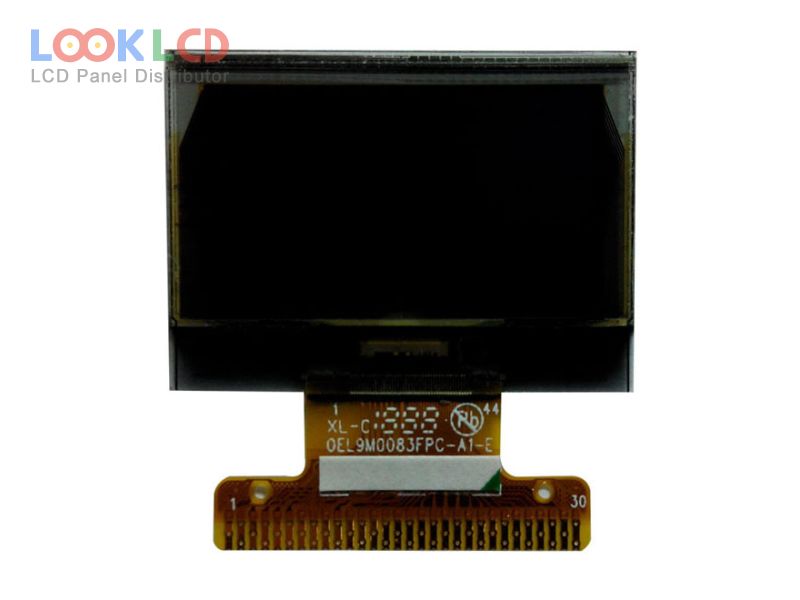

| Broj dijela | OEL9M0083-Y-E |
| Marka | Other |
| Veličina | 0.96 |
| Primjena | |
| Rezolucija | 128×64 |
| Sastav | OLED |
| Svjetlina | |
| CR | 10000:1 |
| Boje | Mono(Yellow) |
| Pozadinsko osvjetljenje | self |
| Sučelje | CPU/SPI/I²C |
| marka panela | TRULY |
| panelni model | OEL9M0083-Y-E |
| vrsta panela | PM-OLED , OLED |
| veličina ploče | 0.96 inch |
| rezolucija | 128×64 |
| aktivno područje | 21.74×11.175 mm |
| obris | 26.7×19.26×1.65 mm |
| površinski | |
| svjetlina | |
| omjer kontrasta | 10000 : 1 (Min.) |
| boje prikaza | Mono(Yellow) (1-bit) |
| kut gledanja | 80/80/80/80 (Min.)(L/R/U/D) |
| frekvencija | 100Hz |
| vozač ic | COG Built-in SH1106G |
| signalno sučelje | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
| OEL9M0039-B-E | Other | 1.5 | 128×128 |
| OEL9M0039-R-E | Other | 1.5 | 128×128 |
| OEL9M0064-G-E | Other | 2.0 | 128×32 |
| OEL9M0064-R-E | Other | 2.0 | 128×32 |
| OEL9M0065-G-E | Other | 2.7 | 256×64 |
| OEL9M0065-W-E | Other | 2.7 | 256×64 |
| OEL9M0068-Y-E | Other | 0.91 | 128×32 |
| OEL9M0073-W-E | Other | 1.0 | 128×64 |
| OEL9M0082-Y-E | Other | 1.1 | 128×128 |
| OEL9M0084-Y-E | Other | 0.91 | 128×32 |
| A056VN01 V0 | AUO | 5.6 | 640×480 |
| C-51505NFJ-SLW-AIN | Kyocera | 3.0 | 20×2 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| DMC-16230NY-LY-EEE-EGN | Kyocera | 3.8 | 16×2 |
| LQ056A3AG01 | SHARP | 5.6 | 320×234 |
| LTA070B2C0F | TOSHIBA | 7.0 | |
| LTA080B441A | TOSHIBA | 8.0 | 480×234 |
| LTV350QV-F02 | Samsung | 3.5 | 320×240 |
| TD043MTEA2 | TPO | 4.3 | 800×480 |
| TFD58W40-F | TOSHIBA | 5.8 |
