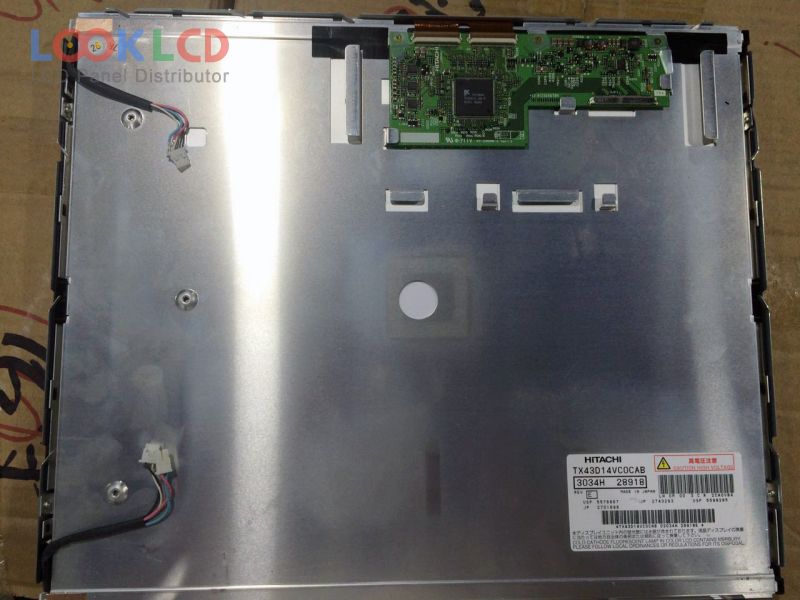

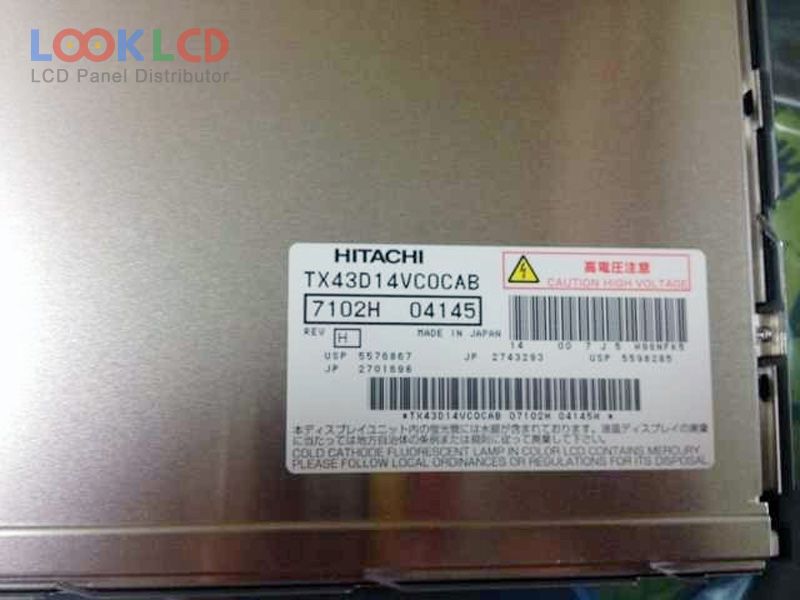

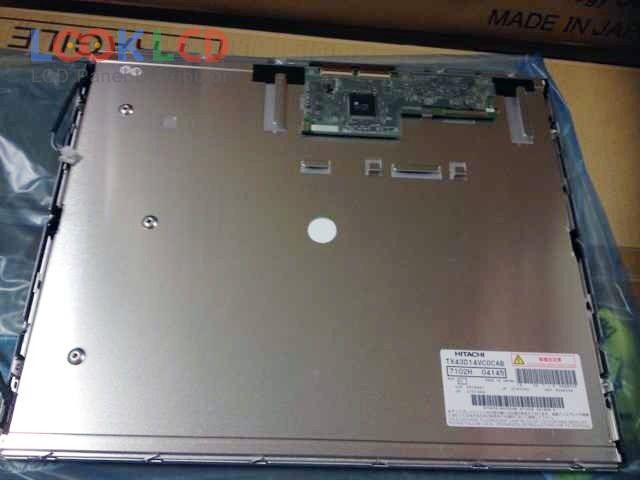

| Broj dijela | TX43D14VC0CAB |
| Marka | KOE |
| Veličina | 17.0 |
| Primjena | DMPC |
| Rezolucija | 1280×1024 |
| Sastav | LCM |
| Svjetlina | 230 |
| CR | 400:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | HITACHI |
| panelni model | TX43D14VC0CAB |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 17.0 inch |
| rezolucija | 1280(RGB)×1024 , SXGA |
| način prikaza | IPS-Pro, Normally Black, Transmissive |
| aktivno područje | 337.92×270.336 mm |
| obris | 368×306 mm |
| površinski | Antiglare |
| svjetlina | 230 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | 16.7M (6-bit + Hi-FRC) |
| vrijeme odziva | 20/20 (Typ.)(Tr/Td) |
| kut gledanja | |
| frekvencija | 60Hz |
| tip svjetiljke | 4 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (2 ch, 8-bit), 30 pins |
| ulazni napon | 5.0V (Typ.) |
| primjena | DMPC |
| AA170EC01 | Mitsubishi | 17.0 | 1280×1024 |
| B170PW03 V1 | AUO | 17.0 | 1440×900 |
| B170UW02 V0 | AUO | 17.0 | 1920×1200 |
| G170ETN01.0 | AUO | 17.0 | 1280×1024 |
| LM170E03-TLH1 | LG Display | 17.0 | 1280×1024 |
| LTA170D200F | TOSHIBA | 17.0 | 1280×1024 |
| LTM170EI-A01 | Samsung | 17.0 | 1280×1024 |
| LTM170EU-L31 | Samsung | 17.0 | 1280×1024 |
| M170ETN01.0 | AUO | 17.0 | 1280×1024 |
| TX43D14VC0CAB | KOE | 17.0 | 1280×1024 |
| LM170E01-TLBF | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLJ2 | LG Display | 17.0 | 1280×1024 |
| LM171WX3-TLC1 | LG Display | 17.1 | 1440×900 |
| LM185WH1-TLF1 | LG Display | 18.5 | 1366×768 |
| LM200WD1-TLC1 | LG Display | 20.0 | 1600×900 |
| LM201U04-A3KC | LG Display | 20.1 | 1600×1200 |
| LM201W01-B6K1 | LG Display | 20.1 | 1680×1050 |
| LM270WQ1-SDE3 | LG Display | 27.0 | 2560×1440 |
| M240HW02 V1 | AUO | 24.0 | 1920×1080 |
| NL128102BC23-03 | NLT | 15.4 | 1280×1024 |
