| Broj dijela | NL128102BC23-03 |
| Marka | NLT |
| Veličina | 15.4 |
| Primjena | DMPC |
| Rezolucija | 1280×1024 |
| Sastav | LCM |
| Svjetlina | 240 |
| CR | 250:1 |
| Boje | 16.2M |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | NEC |

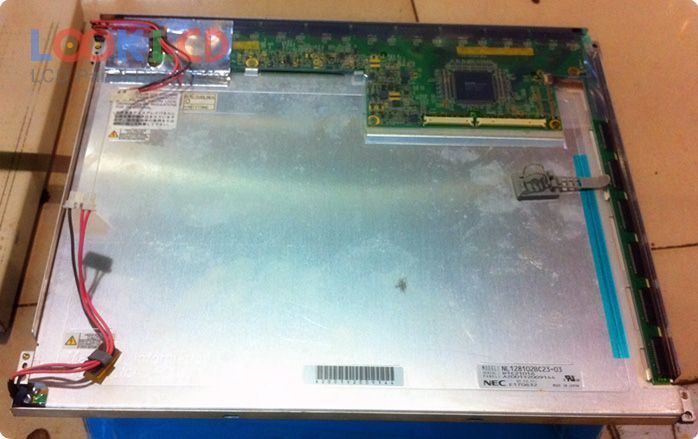

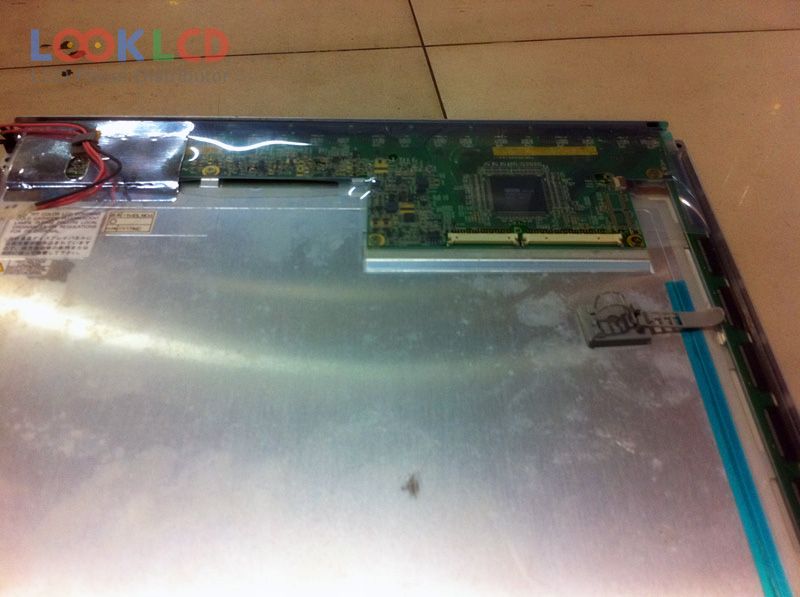

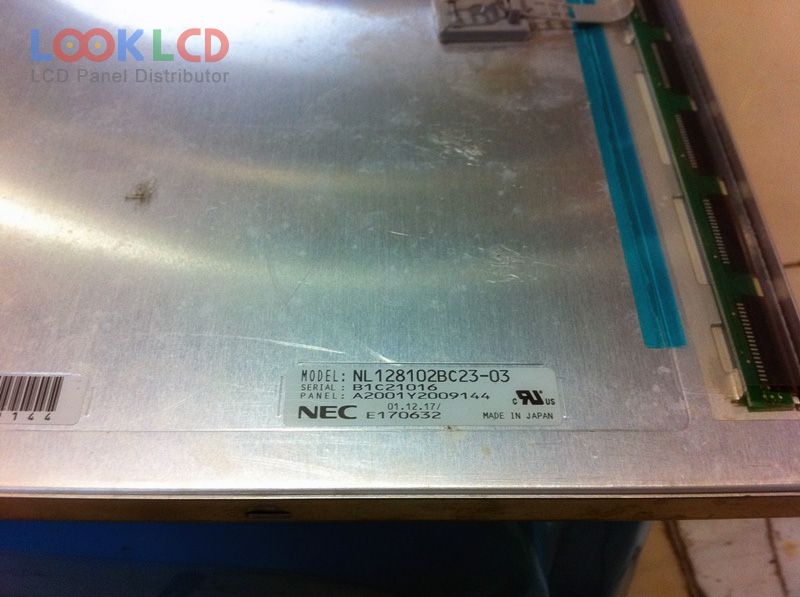

| panelni model | NL128102BC23-03 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 15.4 inch |
| rezolucija | 1280(RGB)×1024 , SXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 305.28×244.224 mm |
| obris | 340×269 mm |
| površinski | Hard coating (3H), Antireflection |
| svjetlina | 240 cd/m² (Typ.) |
| omjer kontrasta | 250:1 (Typ.) |
| boje prikaza | 16.2M (6-bit + FRC), CIE193160% |
| vrijeme odziva | 6/41 (Typ.)(Tr/Td) |
| kut gledanja | 70/70/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 4 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (2 ch, 8-bit), 50 pins |
| ulazni napon | 12.0V (Typ.) |
| primjena | DMPC |
