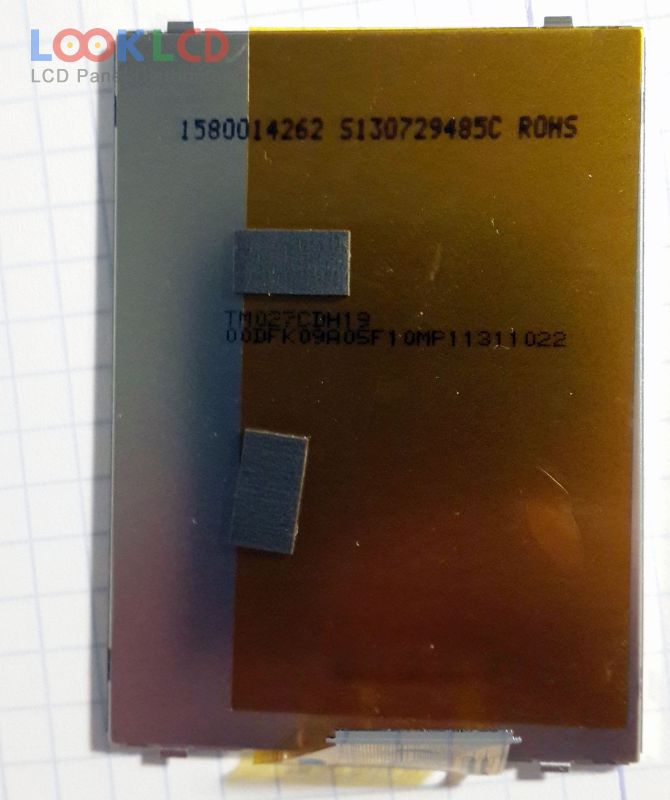

| Broj dijela | TM027CDH19 |
| Marka | Tianma |
| Veličina | 2.7 |
| Primjena | DSC |
| Rezolucija | 320×240 |
| Sastav | LCM |
| Svjetlina | |
| CR | 400:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | Serial RGB |
| marka panela | TIANMA |
| panelni model | TM027CDH19 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 2.7 inch |
| rezolucija | 320(RGB)×240 , QVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 54×40.5 mm |
| površinski | |
| svjetlina | |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193145% |
| vrijeme odziva | 35 (Typ.)(Tr+Td) |
| kut gledanja | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | WLED |
| signalno sučelje | Serial RGB (8-bit) + SPI, CCIR601/656, 39 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | DSC |
| A027DN03 V7 | AUO | 2.7 | 320×240 |
| A027DN04 V3 | AUO | 2.7 | 320×240 |
| LQ027A3DA01 | SHARP | 2.7 | 320×240 |
| LS027B4DH01 | SHARP | 2.7 | 400×240 |
| OEL9M0065-G-E | Other | 2.7 | 256×64 |
| TM027CDH02 | Tianma | 2.7 | 320×240 |
| TM027CDH04 | Tianma | 2.7 | 320×240 |
| TM027CDH12 | Tianma | 2.7 | 320×240 |
| TM027CDH19 | Tianma | 2.7 | 320×240 |
| UG-2864ASYDT01 | WiseChip | 2.7 | 128×64 |
| A030DN01 V9 | AUO | 3.0 | 320×240 |
| A030DN01 VC | AUO | 3.0 | 320×240 |
| ACX318ELN | SONY | 1.5 | 490×240(dot) |
| DLC0350CZG-T-2 | Other | 3.5 | 320×240 |
| L3F04X-80300C | Epson | 0.48 | 1024×768 |
| PD024OX4 | E Ink | 2.4 | 480×234 |
| PD035OX4 | E Ink | 3.5 | 320×234 |
| TD025THEEA | TPO | 2.5 | 640×240 |
| TM030CDH51-00 | Tianma | 3.0 | 320×240 |
| TM035KDH05 | Tianma | 3.5 | 320×240 |
