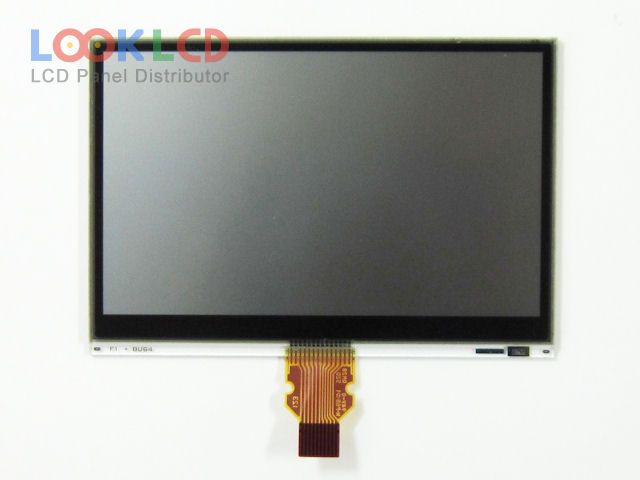

| Broj dijela | LS027B4DH01 |
| Marka | SHARP |
| Veličina | 2.7 |
| Primjena | EPT |
| Rezolucija | 400×240 |
| Sastav | LCM |
| Svjetlina | |
| CR | |
| Boje | Monochrome |
| Pozadinsko osvjetljenje | No B/L |
| Sučelje | SPI |
| marka panela | SHARP |
| panelni model | LS027B4DH01 |
| vrsta panela | CG-Silicon , LCM |
| veličina ploče | 2.7 inch |
| rezolucija | 400×240 , WQVGA |
| način prikaza | Reflective |
| aktivno područje | 58.8×35.28 mm |
| obris | 62.8×42.82 mm |
| površinski | Hard coating (3H) |
| svjetlina | |
| omjer kontrasta | 14:1 (Typ.)(Reflective) |
| boje prikaza | Monochrome (1-bit) |
| vrijeme odziva | 10/20 (Typ.)(Tr/Td) |
| kut gledanja | 60/60/60/60 (Min.)(CR≥2)(L/R/U/D) |
| tip svjetiljke | No B/L |
| signalno sučelje | SPI, 10 pins |
| ulazni napon | 5.0/5.0V (Typ.)(VDD/VDDA) |
| primjena | EPT |
