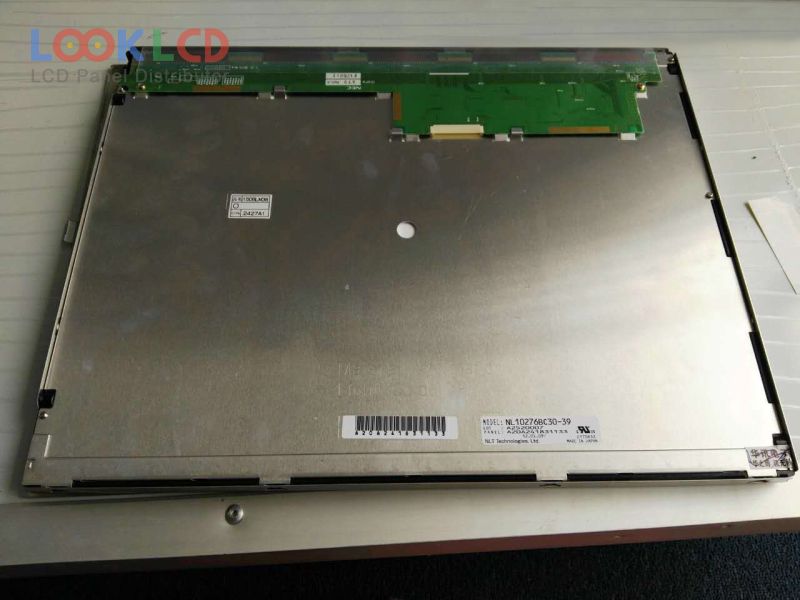

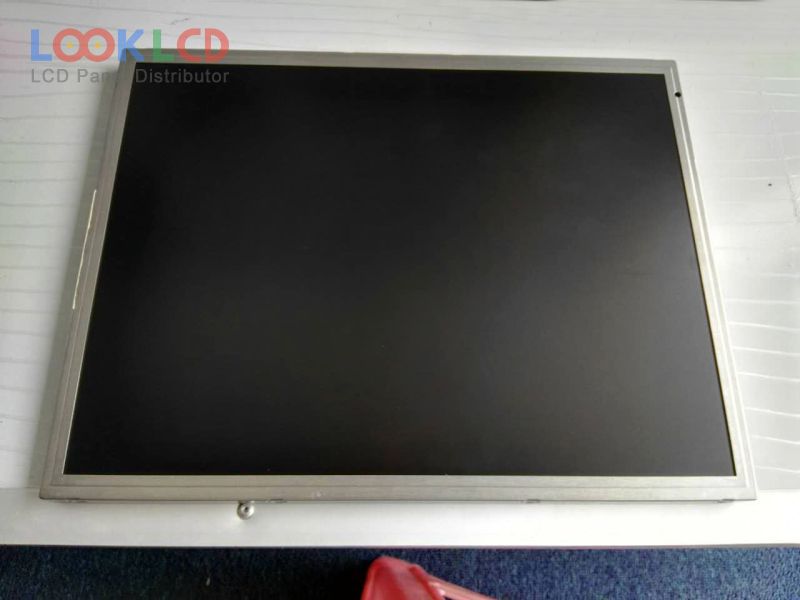

| Broj dijela | NL10276BC30-39 |
| Marka | NLT |
| Veličina | 15.0 |
| Primjena | IA |
| Rezolucija | 1024×768 |
| Sastav | LCM |
| Svjetlina | 270 |
| CR | 900:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | NEC |
| panelni model | NL10276BC30-39 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 15.0 inch |
| rezolucija | 1024(RGB)×768 , XGA |
| način prikaza | UA-SFT, Normally Black, Transmissive |
| aktivno područje | 304.128×228.096 mm |
| obris | 326.5×253.5×12.2 mm |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 270 cd/m² (Typ.) |
| omjer kontrasta | 900:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193172% |
| vrijeme odziva | 14/11 (Typ.)(Tr/Td) |
| kut gledanja | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 6 stringsWLEDWithout Driver |
| signalno sučelje | LVDS (1 ch, 8-bit), 20 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
