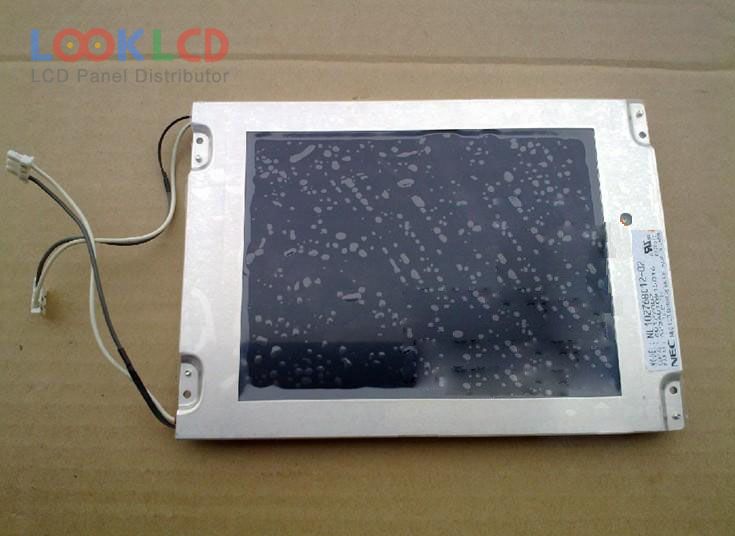

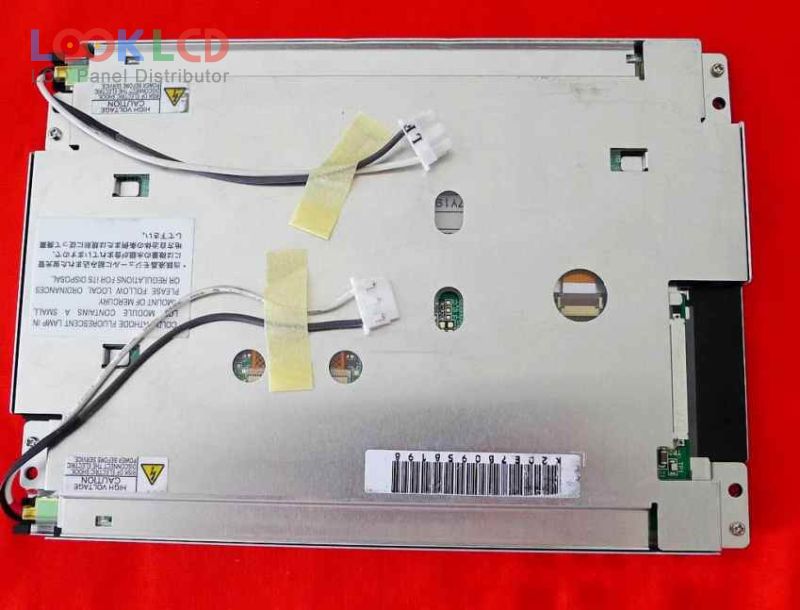

| Broj dijela | NL10276BC12-02 |
| Marka | NLT |
| Veličina | 6.3 |
| Primjena | IA |
| Rezolucija | 1024×768 |
| Sastav | LCM |
| Svjetlina | 250 |
| CR | 500:1 |
| Boje | 262K/16.7M |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | NEC |
| panelni model | NL10276BC12-02 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 6.3 inch |
| rezolucija | 1024(RGB)×768 , XGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 129.024×96.768 mm |
| obris | 178.8×126.8 mm |
| površinski | Antiglare, Hard coating (2H), Antireflection |
| svjetlina | 250 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| vrijeme odziva | 6/15 (Typ.)(Tr/Td) |
| kut gledanja | 60/60/45/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 2 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (1 ch, 6/8-bit), 20 pins |
| ulazni napon | 3.3V (Typ.) |
| rohs: | |
| primjena | IA |
