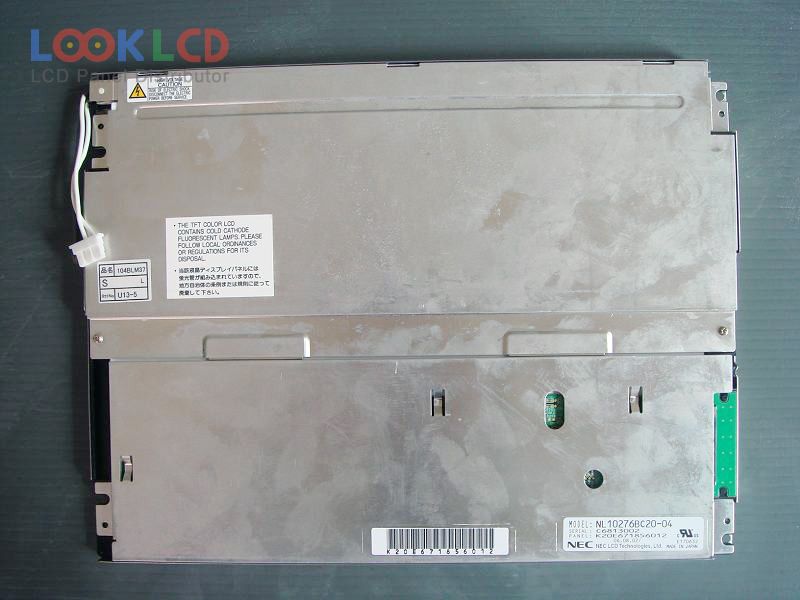

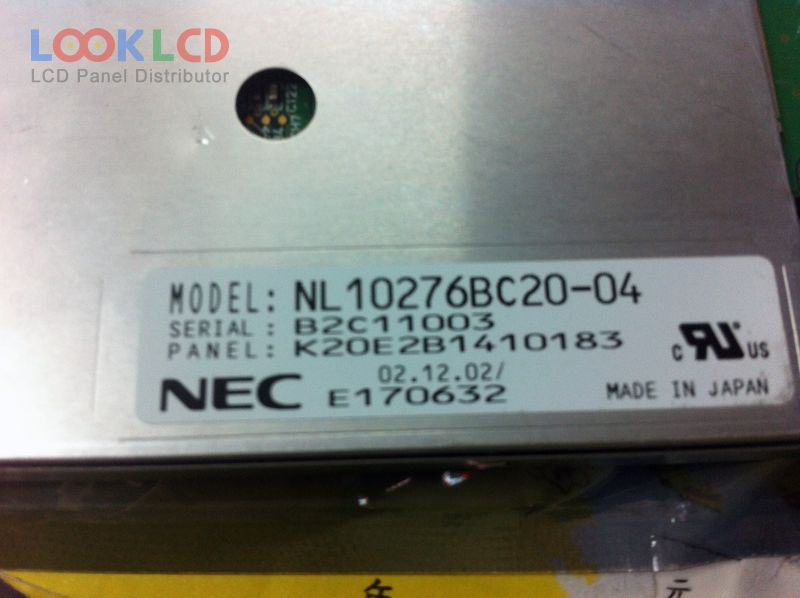

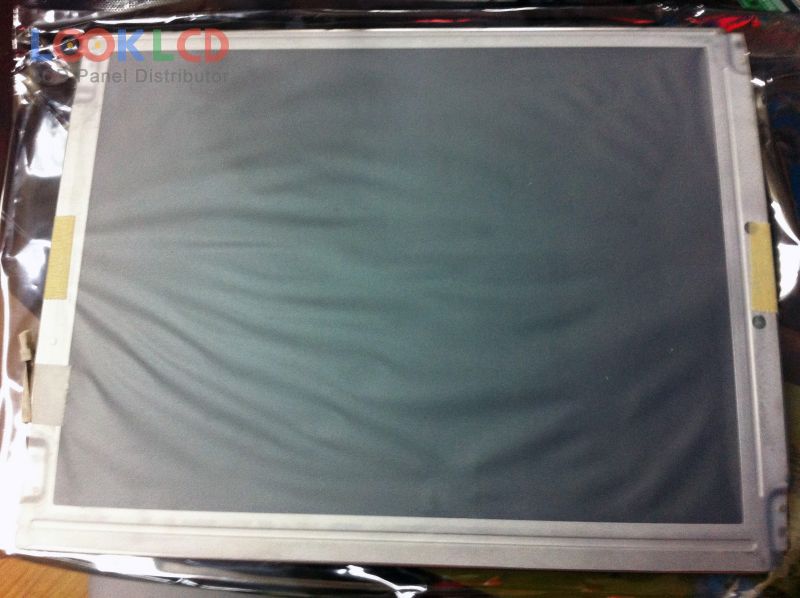

| Broj dijela | NL10276BC20-04 |
| Marka | NLT |
| Veličina | 10.4 |
| Primjena | IA |
| Rezolucija | 1024×768 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 300:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | NEC |
| panelni model | NL10276BC20-04 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 10.4 inch |
| rezolucija | 1024(RGB)×768 , XGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 210.4×157.8 mm |
| obris | 243×185.1×11.5 mm |
| površinski | Clear, Hard coating (3H) |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 300:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193140% |
| vrijeme odziva | 15/40 (Typ.)(Tr/Td) |
| kut gledanja | 60/60/45/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 2 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (1 ch, 6-bit), 20 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
