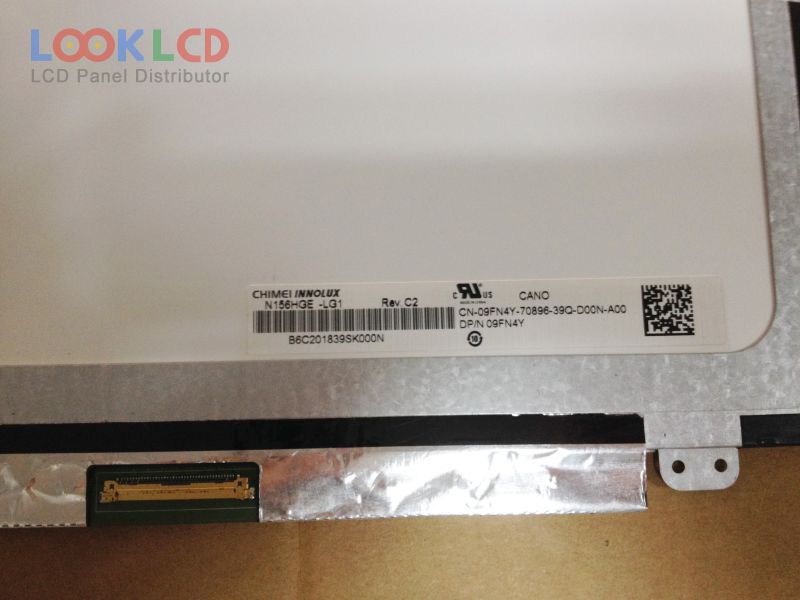

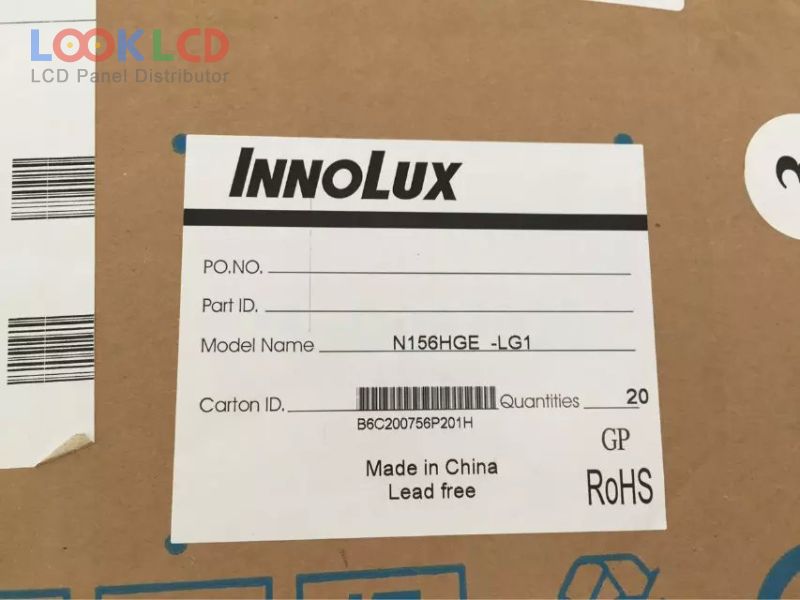

| Broj dijela | N156HGE-LG1 |
| Marka | Innolux |
| Veličina | 15.6 |
| Primjena | NBPC |
| Rezolucija | 1920×1080 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 600:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | INNOLUX |
| panelni model | N156HGE-LG1 2 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 15.6 inch |
| rezolucija | 1920(RGB)×1080 , FHD |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 344.16×193.59 mm |
| obris | 359.5×223.8×3.4 mm |
| stil oblika | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 600:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193160% |
| vrijeme odziva | 3/8 (Typ.)(Tr/Td) |
| kut gledanja | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 6 stringsWLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (2 ch, 6-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
| LQ156M3LW01 | SHARP | 15.6 | 1920×1080 |
| LTN156AT20-P02 | Samsung | 15.6 | 1366×768 |
| N156HCA-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA2 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EAL Rev.C1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-L11 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LB1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LG1 | Innolux | 15.6 | 1920×1080 |
| B121EW09 V0 | AUO | 12.1 | 1280×800 |
| B133XW01 V0 | AUO | 13.3 | 1366×768 |
| LP133WH2-TLN4 | LG Display | 13.3 | 1366×768 |
| LP133WX1-TLB1 | LG Display | 13.3 | 1280×800 |
| LP156WH3-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH8-TLA2 | LG Display | 15.6 | 1366×768 |
| LTN133AT23-C01 | Samsung | 13.3 | 1366×768 |
| LTN140AT20-301 | Samsung | 14.0 | 1366×768 |
| LTN150XG-L05 | Samsung | 15.0 | 1024×768 |
| NT116WHM-N22 | BOE | 11.6 | 1366×768 |
