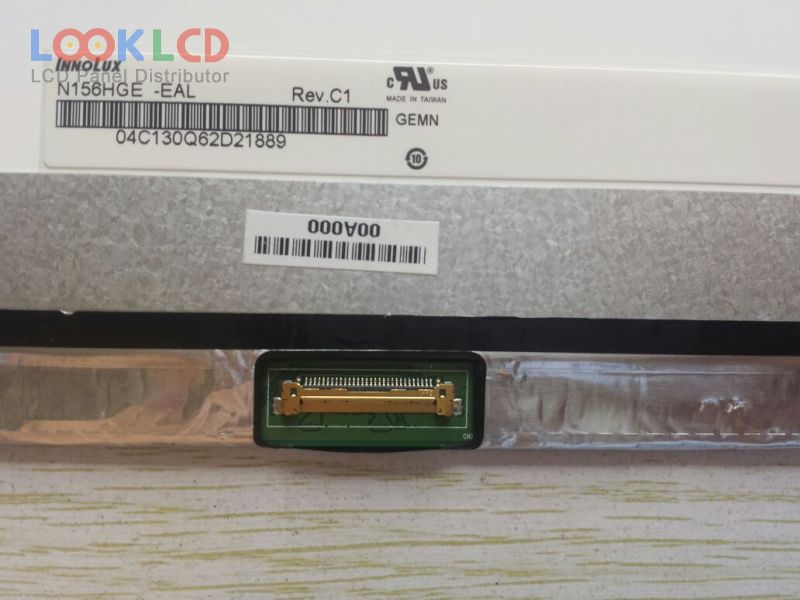

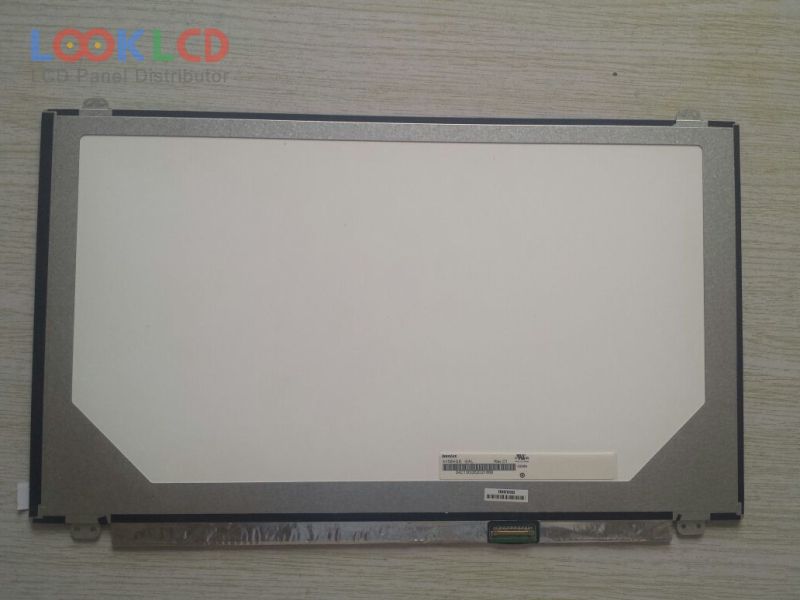

N156HGE-EAL Rev.C1

N156HGE-EAL Rev.C1
N156HGE-EAL Rev.C1
N156HGE-EAL Rev.C1 thumb N156HGE-EAL Rev.C1 thumb
Marka
Innolux
Veličina
15.6
Primjena
NBPC
Rezolucija
1920×1080
Sastav
LCM
Svjetlina
220
CR
500:1
Boje
262K
Pozadinsko osvjetljenje
WLED
Sučelje
eDP
In Stock
13136
Tehnički podaci

Broj dijela N156HGE-EAL Rev.C1
MarkaInnolux
Veličina15.6
PrimjenaNBPC
Rezolucija1920×1080
SastavLCM
Svjetlina220
CR500:1
Boje262K
Pozadinsko osvjetljenjeWLED
SučeljeeDP
marka panelaINNOLUX
panelni modelN156HGE-EAL Rev.C1
vrsta panela a-Si TFT-LCD , LCM
veličina ploče15.6 inch
rezolucija1920(RGB)×1080 , FHD
način prikazaTN, Normally White, Transmissive
aktivno područje344.16×193.59 mm
obris359.5×224.3×3.2 mm
stil oblikaSlim (PCBA Flat, Depth ≤3.2mm)
površinskiAntiglare (Haze 24%), Hard coating (3H)
svjetlina220 cd/m² (Typ.)
omjer kontrasta500:1 (Typ.)
boje prikaza262K (6-bit), CIE193194%
vrijeme odziva3/8 (Typ.)(Tr/Td)
kut gledanja85/85/20/35 (Typ.)(CR≥10)(L/R/U/D)
frekvencija60Hz
tip svjetiljkeWLEDEmbedded (LED Driver)
signalno sučeljeeDP (2 Lanes), 30 pins
ulazni napon3.3V (Typ.)
primjenaNBPC
