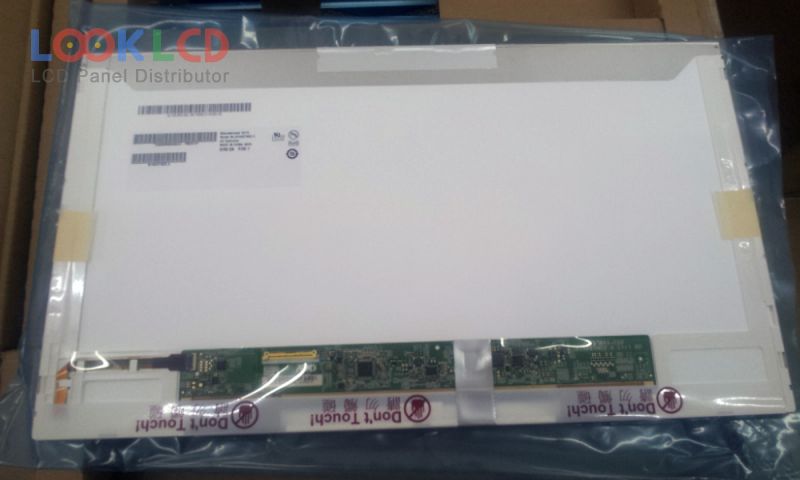

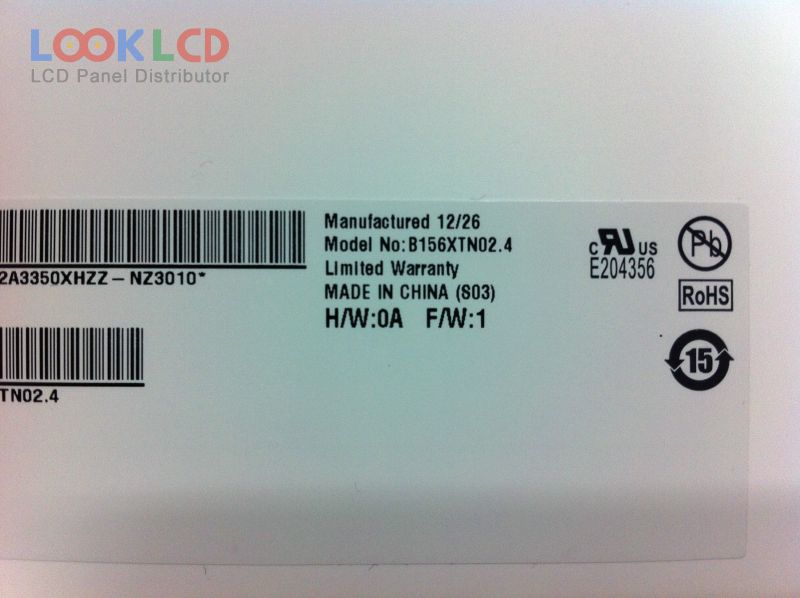

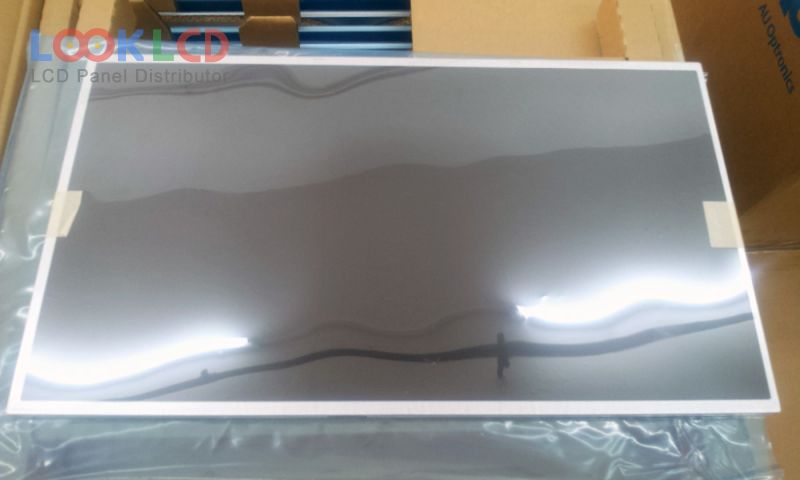

| Broj dijela | B156XTN02.4 |
| Marka | AUO |
| Veličina | 15.6 |
| Primjena | NBPC |
| Rezolucija | 1366×768 |
| Sastav | LCM |
| Svjetlina | 200 |
| CR | 400:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | AUO |
| panelni model | B156XTN02.4 8 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 15.6 inch |
| rezolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 344.232×193.536 mm |
| obris | 359.3×209.5×5.6 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193145% |
| vrijeme odziva | 8 (Typ.)(Tr+Td) |
| kut gledanja | 60/60/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (1 ch, 6-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
| B156XTN02.2 | AUO | 15.6 | 1366×768 |
| B156XTN03.2 | AUO | 15.6 | 1366×768 |
| B156XTN04.1 | AUO | 15.6 | 1366×768 |
| B156XTT01.1 | AUO | 15.6 | 1366×768 |
| B156XW01 V2 | AUO | 15.6 | 1366×768 |
| B156XW02 V0 | AUO | 15.6 | 1366×768 |
| B156XW02 V2 HW4A | AUO | 15.6 | 1366×768 |
| B156XW02 V6 | AUO | 15.6 | 1366×768 |
| B156XW03 V1 | AUO | 15.6 | 1366×768 |
| B156XW04 V7 | AUO | 15.6 | 1366×768 |
| CLAA141WB11 | CPT | 14.1 | 1280×800 |
| HT140WXB-100 | BOE | 14.0 | 1366×768 |
| LP121X04-A2 | LG Display | 12.1 | 1024×768 |
| LP133WH1-TLA3 | LG Display | 13.3 | 1366×768 |
| LP141WP1-TLC3 | LG Display | 14.1 | 1440×900 |
| LTD111EWAS | TOSHIBA | 11.1 | 1366×768 |
| LTN154X1-L03 | Samsung | 15.4 | 1280×800 |
| LTN156AT01-B02 | Samsung | 15.6 | 1366×768 |
| LTN173HT02-X01 | Samsung | 17.3 | 1920×1080 |
| N154C6-L04 | Innolux | 15.4 | 1440×900 |
