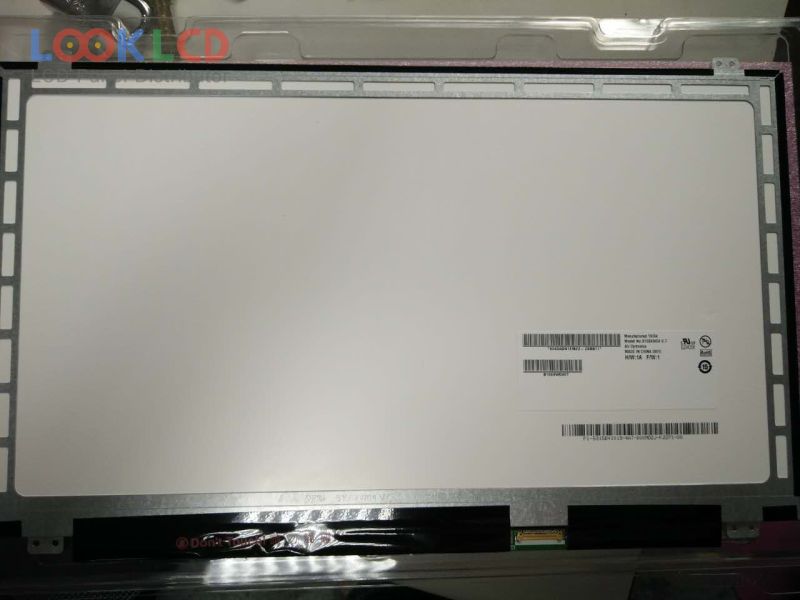

| Broj dijela | B156XW04 V7 |
| Marka | AUO |
| Veličina | 15.6 |
| Primjena | NBPC |
| Rezolucija | 1366×768 |
| Sastav | LCM |
| Svjetlina | 200 |
| CR | 400:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | eDP |
| marka panela | AUO |
| panelni model | B156XW04 V7 18 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 15.6 inch |
| rezolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 344.232×193.536 mm |
| obris | 359.5×223.8×3.8 mm |
| stil oblika | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193145% |
| vrijeme odziva | 8 (Typ.)(Tr+Td) |
| kut gledanja | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | eDP (1 Lane), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
| B156XTN02.2 | AUO | 15.6 | 1366×768 |
| B156XTN02.4 | AUO | 15.6 | 1366×768 |
| B156XTN03.5 | AUO | 15.6 | 1366×768 |
| B156XTN04.5 | AUO | 15.6 | 1366×768 |
| B156XTN05.0 | AUO | 15.6 | 1366×768 |
| B156XW01 V0 | AUO | 15.6 | 1366×768 |
| B156XW02 V0 | AUO | 15.6 | 1366×768 |
| B156XW02 V2 HW4A | AUO | 15.6 | 1366×768 |
| B156XW02 V3 | AUO | 15.6 | 1366×768 |
| B156XW04 V6 | AUO | 15.6 | 1366×768 |
| B156HAT01.0 | AUO | 15.6 | 1920×1080 |
| BT156GW01 V.4 | Innolux | 15.6 | 1366×768 |
| LP121WX3-TPB1 | LG Display | 12.1 | 1280×800 |
| LQ141X1LH03 | SHARP | 14.1 | 1024×768 |
| LQ170M1LA4B | SHARP | 17.0 | 1920×1200 |
| LTN121AT06-G01 | Samsung | 12.1 | 1280×800 |
| LTN121AT11-801 | Samsung | 12.1 | 1280×800 |
| LTN150KT02-801 | Samsung | 15.0 | 1600×900 |
| LTN156AT35-W02 | Samsung | 15.6 | 1366×768 |
| N140BGE-L41 | Innolux | 14.0 | 1366×768 |
