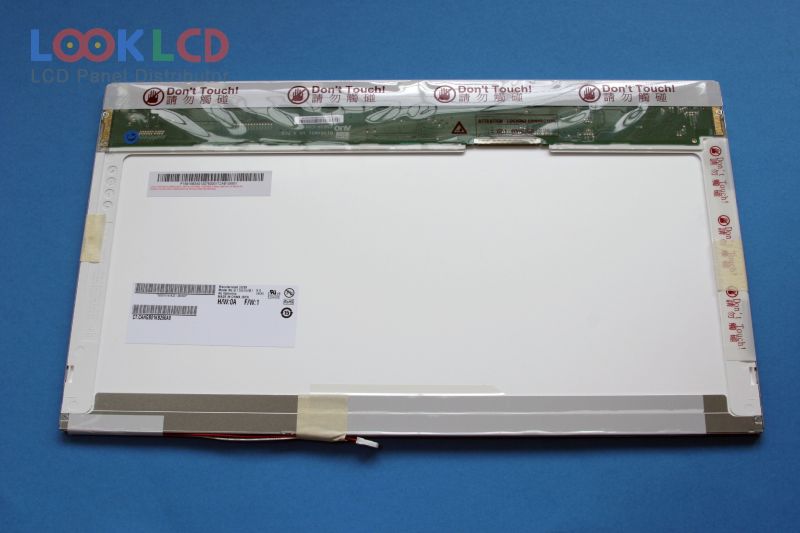

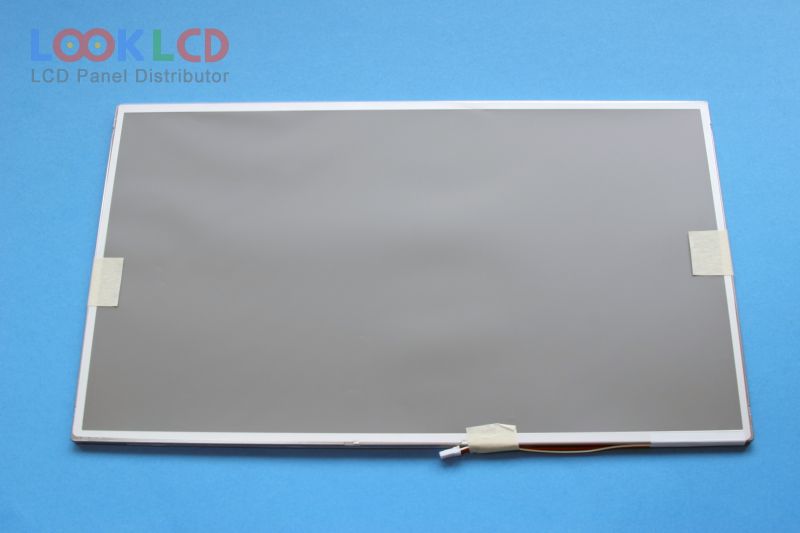

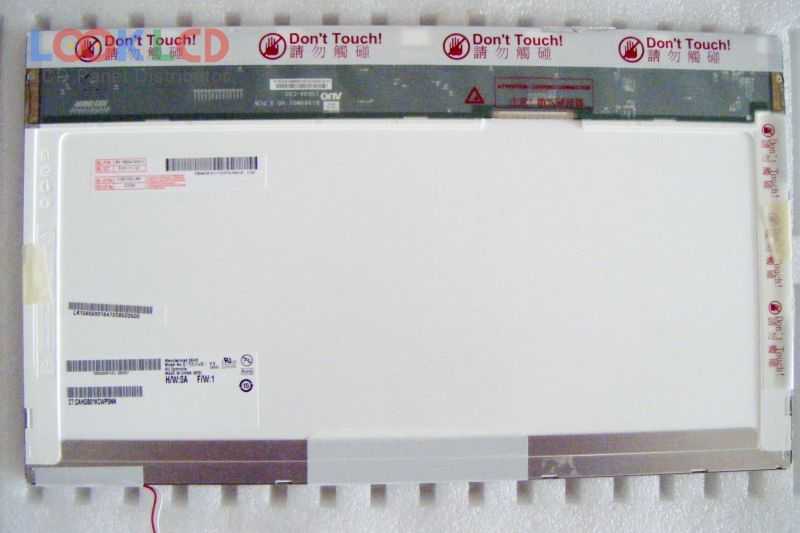

| Broj dijela | B156XW01 V0 |
| Marka | AUO |
| Veličina | 15.6 |
| Primjena | NBPC |
| Rezolucija | 1366×768 |
| Sastav | LCM |
| Svjetlina | 220 |
| CR | 500:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | AUO |
| panelni model | B156XW01 V0 11 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 15.6 inch |
| rezolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 344.232×193.536 mm |
| obris | 359.3×209.5×6.4 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | Glare (Haze 0%), Hard coating (3H) |
| svjetlina | 220 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193160% |
| vrijeme odziva | 8 (Typ.)(Tr+Td) |
| kut gledanja | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (1 ch, 6-bit), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
| B156XTK01.0 | AUO | 15.6 | 1366×768 |
| B156XTN02.2 | AUO | 15.6 | 1366×768 |
| B156XTN03.2 | AUO | 15.6 | 1366×768 |
| B156XTT01.1 | AUO | 15.6 | 1366×768 |
| B156XW01 V0 | AUO | 15.6 | 1366×768 |
| B156XW02 V6 | AUO | 15.6 | 1366×768 |
| B156XW03 V2 | AUO | 15.6 | 1366×768 |
| B156XW04 V5 | AUO | 15.6 | 1366×768 |
| B156XW04 V6 | AUO | 15.6 | 1366×768 |
| B156XW04 V7 | AUO | 15.6 | 1366×768 |
| B141XG09 V0 | AUO | 14.1 | 1024×768 |
| HX121WX1-101 | HYDIS | 12.1 | 1280×800 |
| LP141X3 | LG Display | 14.1 | 1024×768 |
| LP173WF1-TLC1 | LG Display | 17.3 | 1920×1080 |
| LTN140AT22-W01 | Samsung | 14.0 | 1366×768 |
| LTN150PF-L02 | Samsung | 15.0 | 1400×1050 |
| LTN173KT03-B01 | Samsung | 17.3 | 1600×900 |
| N141C3-L02 | Innolux | 14.1 | 1440×900 |
| N156HCA-EA1 | Innolux | 15.6 | 1920×1080 |
| N156O6-L02 | Innolux | 15.6 | 1600×900 |
