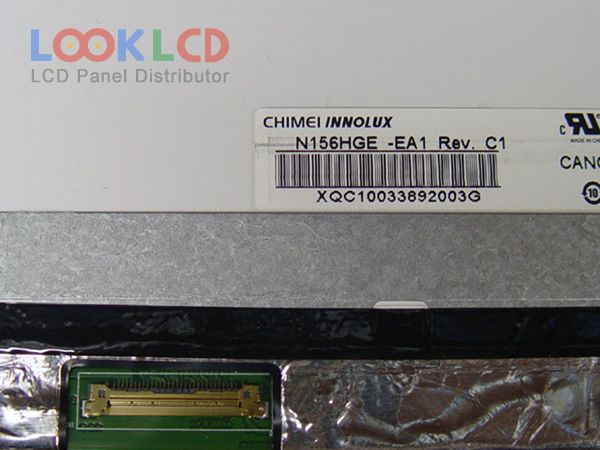

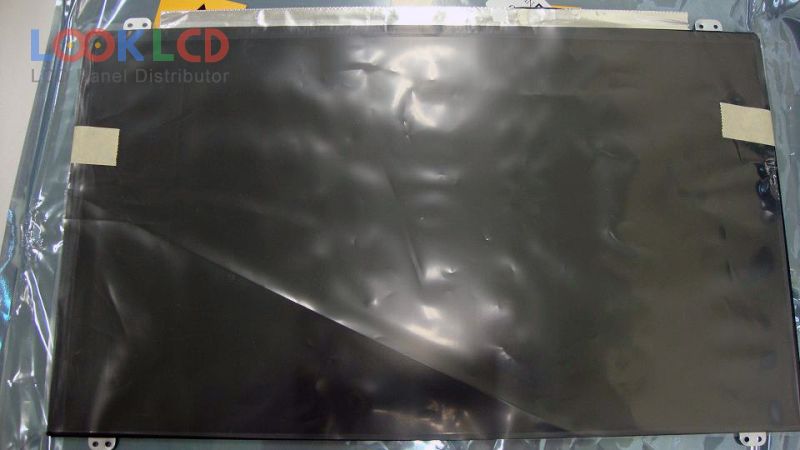

| Broj dijela | N156HGE-EA1 |
| Marka | Innolux |
| Veličina | 15.6 |
| Primjena | NBPC |
| Rezolucija | 1920×1080 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 500:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | eDP |
| marka panela | INNOLUX |
| panelni model | N156HGE-EA1 12 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 15.6 inch |
| rezolucija | 1920(RGB)×1080 , FHD |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 344.16×193.59 mm |
| obris | 359.5×223.8×3.2 mm |
| stil oblika | Slim (PCBA Flat, Depth ≤3.2mm) |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193160% |
| vrijeme odziva | 3/8 (Typ.)(Tr/Td) |
| kut gledanja | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 6 stringsWLEDEmbedded (LED Driver) |
| signalno sučelje | eDP (2 Lanes), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
