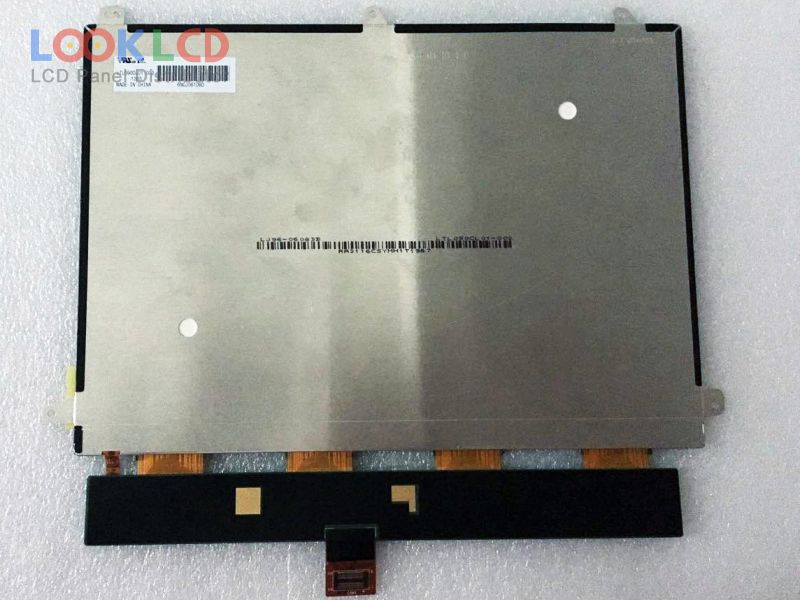

| Broj dijela | LTL090CL01-002 |
| Marka | Samsung |
| Veličina | 9.0 |
| Primjena | PAD |
| Rezolucija | 1920×1280 |
| Sastav | LCM |
| Svjetlina | |
| CR | 800:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | MIPI |
| marka panela | SAMSUNG |
| panelni model | LTL090CL01-002 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 9.0 inch |
| rezolucija | 1920(RGB)×1280 |
| način prikaza | PLS, Normally Black, Transmissive |
| aktivno područje | 190.08×126.72 mm |
| obris | 200.91×141.21×2.73 mm |
| površinski | |
| svjetlina | |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193150% |
| vrijeme odziva | 16 (Typ.)(Tr+Td) |
| kut gledanja | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLED |
| signalno sučelje | MIPI (4 data lanes), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | PAD |
