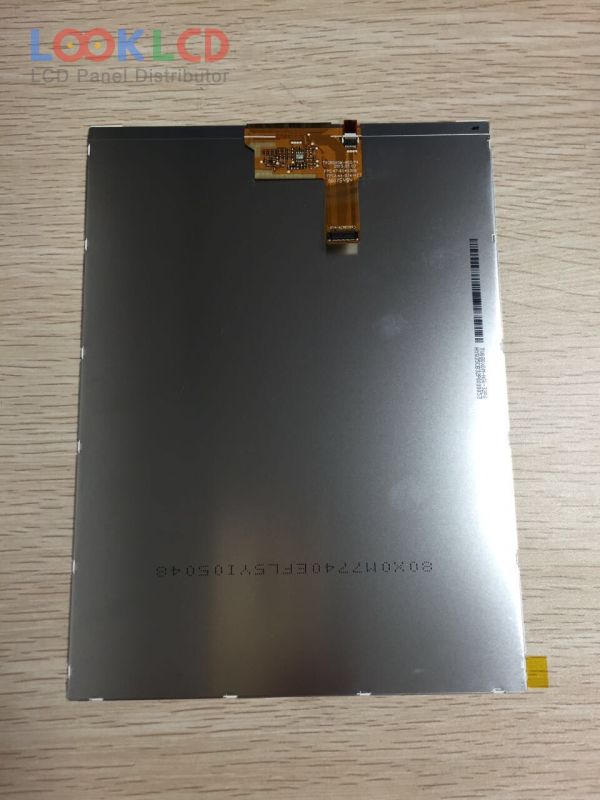

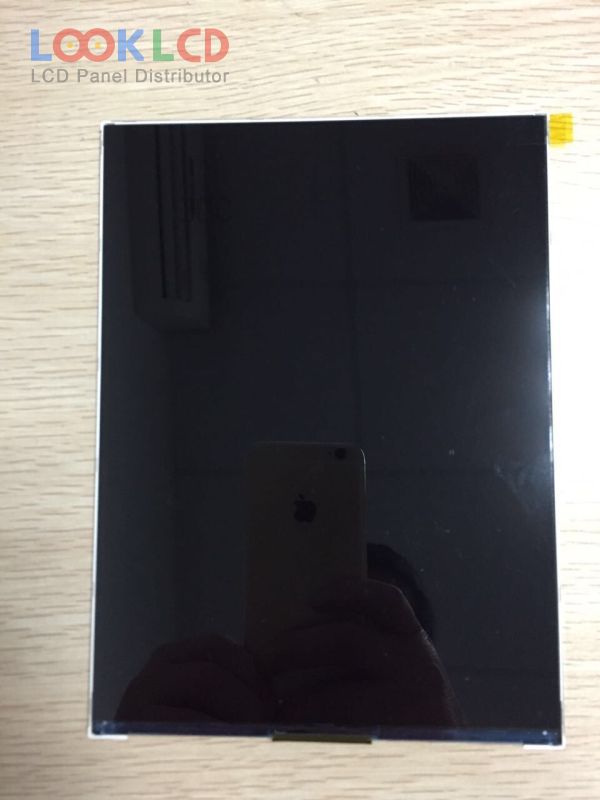

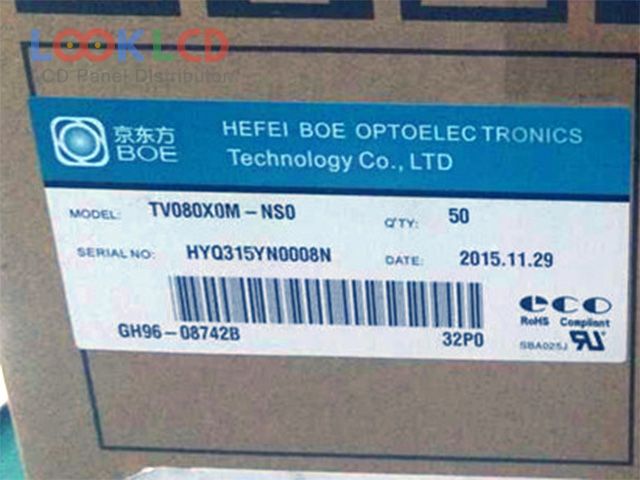

| Broj dijela | TV080X0M-NS0 |
| Marka | BOE |
| Veličina | 8.0 |
| Primjena | PAD |
| Rezolucija | 768×1024 |
| Sastav | LCM |
| Svjetlina | 450 |
| CR | 900:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | MIPI |
| marka panela | BOE |
| panelni model | TV080X0M-NS0 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 8.0 inch |
| rezolucija | 768(RGB)×1024 , XGA |
| način prikaza | ADS, Normally Black, Transmissive |
| aktivno područje | 121.882×162.509 mm |
| obris | 128.142×173.739 mm |
| površinski | |
| svjetlina | 450 cd/m² (Typ.) |
| omjer kontrasta | 900:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193171% |
| vrijeme odziva | 30 (Typ.)(Tr+Td) |
| kut gledanja | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 8S3PWLEDWithout Driver |
| signalno sučelje | MIPI (4 data lanes), 34 pins |
| ulazni napon | 1.8/5.4/-5.4V (Typ.)(Vio/Vsn/Vsp) |
| primjena | PAD |
