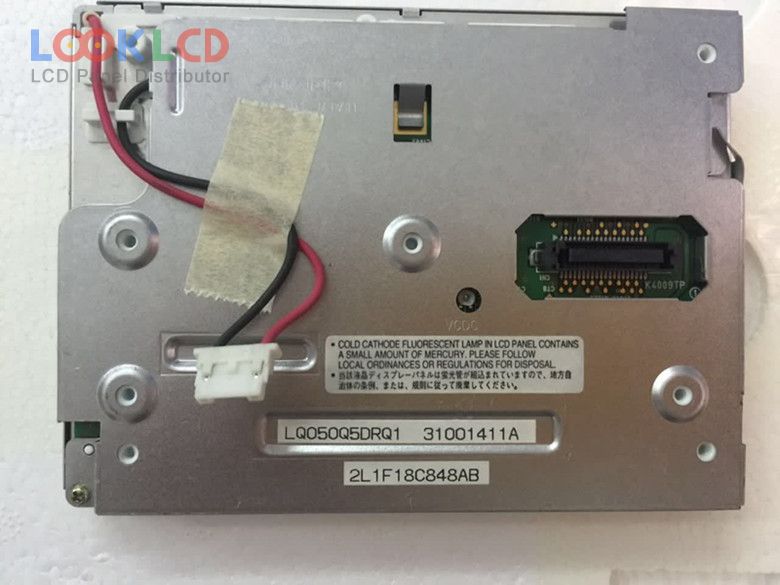

| Broj dijela | LQ050Q5DR01 |
| Marka | SHARP |
| Veličina | 5.0 |
| Primjena | CNS |
| Rezolucija | 320×240 |
| Sastav | LCM |
| Svjetlina | 380 |
| CR | 100:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | TTL |
| marka panela | SHARP |
| panelni model | LQ050Q5DR01 1 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 5.0 inch |
| rezolucija | 320(RGB)×240 , QVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 101.28×74.76 mm |
| obris | 119.4×89.1×16.05 mm |
| površinski | Antiglare, Antireflection |
| svjetlina | 380 cd/m² (Typ.) |
| omjer kontrasta | 100:1 (Min.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 30/50 (Typ.)(Tr/Td) |
| kut gledanja | 65/65/55/65 (Typ.)(CR≥5)(L/R/U/D) |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit), 40 pins |
| ulazni napon | 3.3V (Typ.)(VCC) |
| rohs: | |
| primjena | CNS |
